Size: 48 × 48 mm.
Ideal for Food Processing Machines or Other,
Applications that Require Watertightness,
Four sizes (96 × 96, 72 × 72, 48 × 96, 48 × 48) are available.
Conforms to IP66 or NEMA4 (indoors). Output: DPDT.
Lighting: LED (with built-in reduced-voltage lighting function).
Operating voltage: 200/220 VAC/VDC.
Pushbutton colorsymbol: R: red, Y: yellow; PY: pure yellow
G: green, A: blue; PW: pure white; B: black *2 CPM1A-40CDT-A-V1
Item: Momentary operation (Self-resetting).
Separate Construction with.
Cylindrical 16-dia. Body.
Miniature design of 28.5 mm, the smallest class in the industry.
Detachable Switch.
The same contacts can be used for both standard loads and microloads.
Easy-to-wire terminal arrangement.
Certified for EN 60947-5-1. Name: Safety Network Controller.
No. of I/O points: Safety inputs, 16; Test outputs. 4; Safety outputs, 8.
Unit version: 1.1.
Directly Connected to SYSMAC.
CS/CJ Series via EtherNet/IP.
Monitors safety systems via EtherNet/IP.
Equipped with master functions of CIP Safety on DeviceNet.
Does not require external devices for connecting.
Safety Network Controller and EtherNet/IP.
Increased maintainability in combination with,
OMRON’s EtherNet/IP compatible PLC.
ISO13849-1 (PLe) and IEC 61508 SIL3 certification. No. of poles: 4.
Connection method: Screw-on.
Suitable cable dia: 6 mm (5 to 6).
Core conductor size: 0.18 to 0.75 mm.
Suitable sheath material: PVC, PE, PUR.
Angled Connectors.
Minimum order: 50.
Round Water-resistive Smartclick.
Connectors That Reduce Installation Work.
A newly developed lock mechanism that is compatible with round M12 connectors.
Simply insert the Connectors, then turn them approximately 1/8 of a turn to lock.
A positive click indicates locking.
Features the same degree of protection (IP67) as M12 connectors.
A full line-up of models is planned.
Connectors with Cables are UL approved. Shape: DIP straight terminal.
Pole number: 10.
Pole pole number: 1.
Minimum packing unit: 90.
Printed board connector core, MIL specification standard.
Through the use of new productivity design, high reliability and low price synchronization.
A box type plug (XG4C) which is convenient for saving space is provided in the province.
A press type plug (XG4E) capable of using the relay is provided.
Will be the company''s loose wire connector (XG5) - specific plug (XG8) and PCB type.
(XG2) combined use of various types of packaging can be achieved.
Suitable for the company''s own development of a simple locking lever can make the unique plug (XG8) and,
Box type plugs (XG4C) can also be locked.
MIL specification (MIL-C-83503) standard.
Standard product conforms to the UL specification (No. E103202 File) certified products.

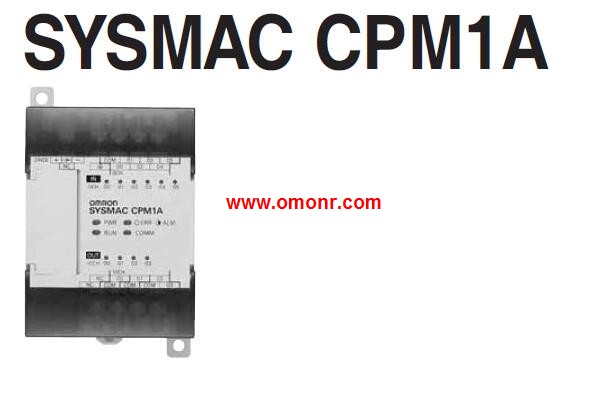

CPM1A-40CDT-A-V1 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=CPM1A-40CDT-A-V1&select=5
