Size: 1/16 DIN.
Case color: Black.
Power supply voltage: 24 VAC/VDC.
Input type: Thermocouple or resistance thermometer.
Auxiliary outputs: None.
Control output 1: Voltage output (for driving SSR).

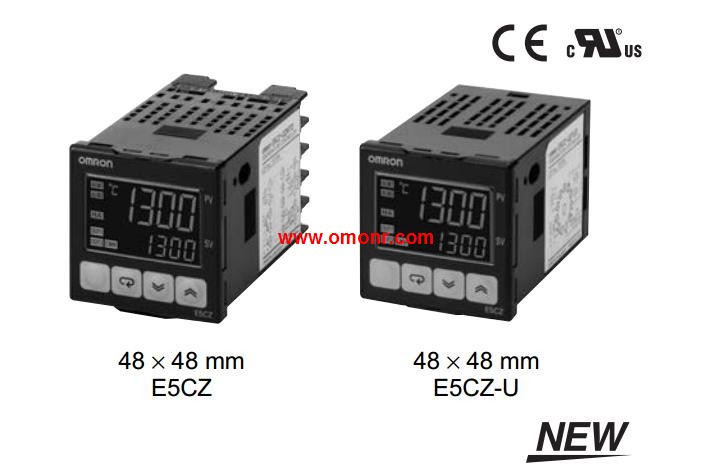

New 48 x 48-mm Basic Temperature.
Controller with Enhanced Functions and,
Performance. Improved Indication Accuracy,
and Preventive Maintenance Function.
Indication Accuracy.
Thermocouple input: ±0 E5CZ-R2MLD AC/DC243% of PV (previous models: ±0.5%),
Pt input: ±0.2% of PV (previous models: ±0.5%),
Analog input: ±0.2% FS (previous models: ±0.5%),
New E5CN-U Models (Plug-in Models) with analog inputs and,
current outputs.
A PV/SV-status display function can be set to automatically alternate,
between displaying the status of the Temperature Controller (auto/
manual, RUN/STOP, and alarms) and the PV or SV.
Preventive maintenance for relays in the Temperature,
Controller using a Control Output ON/OFF Counter. Appearance: Shielded, M8.
Stable sensing area: 1.5 (3) mm.
Separate Amplifier Sensor with.
Sensitivity Adjustment.
Compact design with smaller Sensor Head.
Heat-resistance model available for application between.
-10 and 200°C. A DIN 48 × 24 Preset Counter.
Compact, Yet Equipped with.
Communication.
Only 48 × 24 × 83 mm (W × H × D),
Switch between 4-digit preset counter and 4-digit timer operation.
While using the preset counter, it is possible to switch the,
display to monitor the totalizing count value (8 digits).
Built-in prescaling for counter operation.
ON/OFF-duty adjustable flicker mode that can be used to per,
form cyclic control is available for timer operation.
SV can be changed using front panel keys to any of four values,
preset in SV-banks.
Water-proof structure to NEMA4X/IP66.
Conforms to UL, CSA, and IEC safety standards as well as CE Marking. Classification: Standard.
Contact gap: G (0.5 mm).
Drip-proof terminal protective cover: Not provided.
Actuator: Short hinge lever.
Best-selling Basic Switch Boasting.
High Precision and Wide Variety.
A large switching capacity of 15 A with high repeat accuracy.
A wide range of variations in contact form for your selection: basic,
split-contact, maintained-contact, and adjustable contact gap types.
A series of standard models for micro loads is available.
A series of molded terminal-type models incorporating safety,
terminal protective cover is available.
E5CZ-R2MLD AC/DC24 Operation manual/Instructions/Model selection sample download link: /searchDownload.html?Search=E5CZ-R2MLD AC/DC24&select=5
