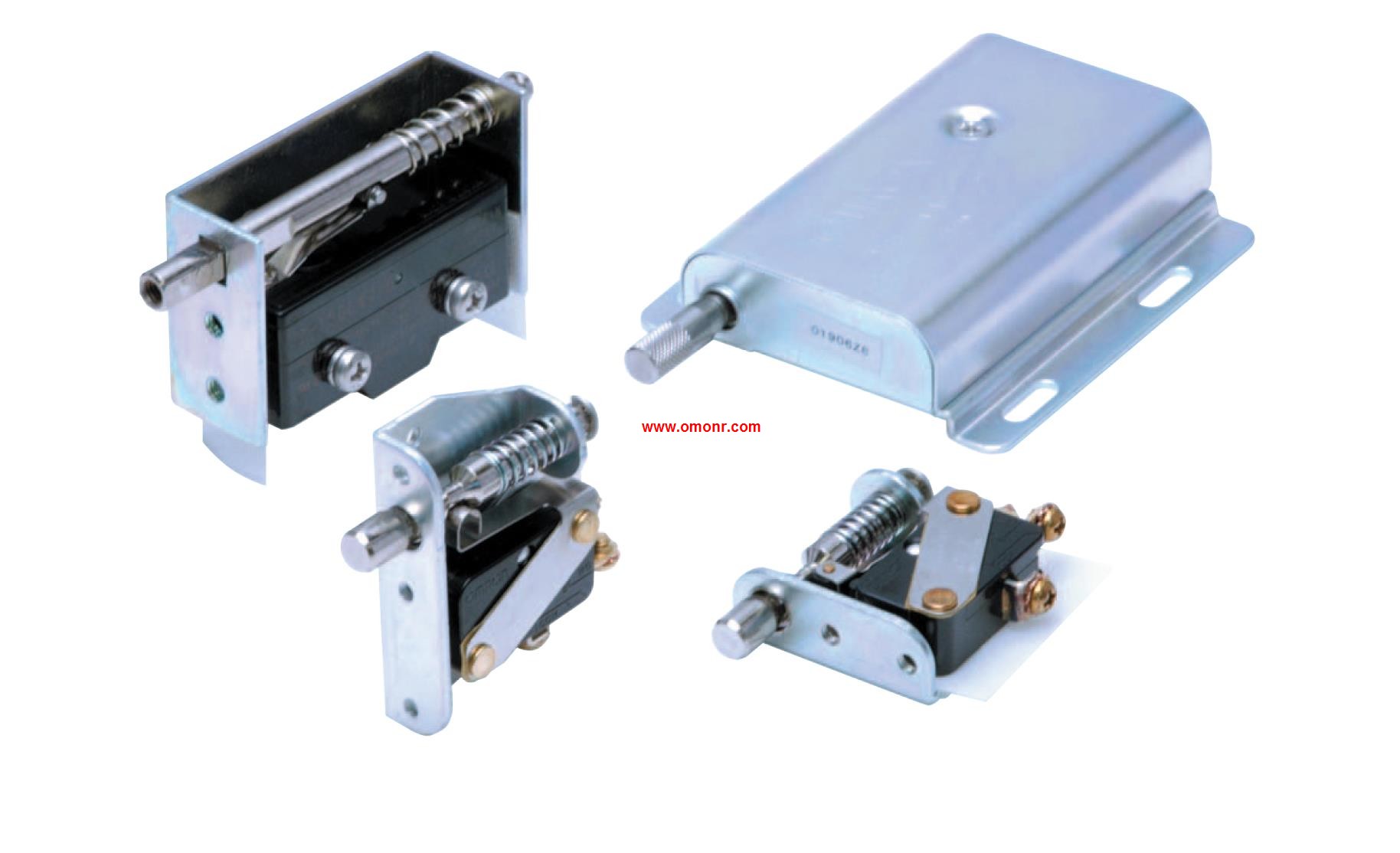

1ZAP2 | OMRON Door Switches 1ZAP2
OMRON 1ZAP2 Manual And Instructions
1ZAP2 datasheetPDF datasheet
OMRON 1ZAP2 Product information and technical parameters：
Brand: OMRON
Name: Door Switches
Model: 1ZAP2
Operation: Push operation, Self-reset; Pull operation, Hold.
Built-in Switch: Z-15GL42-B.
Door Switches with Built-in Basic.
Switches for Long Life.
Installation in electrical facilities, equipment doors, and other,
openings helps ensure safety by reliably preventing accidents.
A Basic Switch if built in to provide a large switching capacity,
and long service life.
