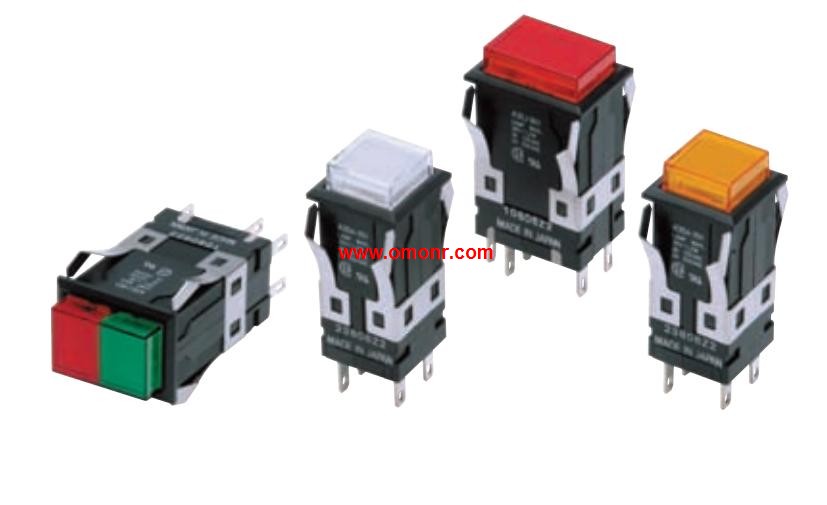

A3SJ-90A3-24EWW | OMRON Lighted Pushbutton Switch A3SJ-90A3-24EWW
OMRON A3SJ-90A3-24EWW Manual And Instructions
A3SJ-90A3-24EWW datasheetPDF datasheet
OMRON A3SJ-90A3-24EWW Product information and technical parameters：
Brand: OMRON
Name: Lighted Pushbutton Switch
Model: A3SJ-90A3-24EWW
Contact type: Standard load (250 VAC, 2 A; 125 VDC 0.4 A).
Operation: Momentary operation (Self-resetting).
Output: SPDT.
Lighting: LED, 24 VDC.
Operation Unit color symbol: Enter the desired color symbol for the,
Pushbutton in @@. R (Red); Y (Yellow); G (Green); A (Blue); W (White).
Pushbutton Switch Series with.
Square 40-mm Body.
Combines miniature design with distinct but soft sense of operation.
Easy panel mounting from the front and simple lamp replacement.
without tools.
