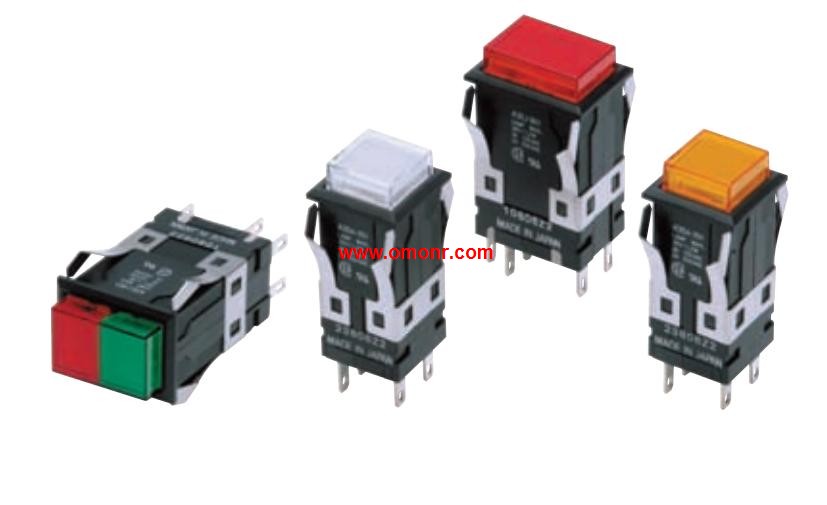

A3SJ-90C1-14A | OMRON Lighted Pushbutton Switch A3SJ-90C1-14A
OMRON A3SJ-90C1-14A Manual And Instructions
A3SJ-90C1-14A datasheetPDF datasheet
OMRON A3SJ-90C1-14A Product information and technical parameters：
Brand: OMRON
Name: Lighted Pushbutton Switch
Model: A3SJ-90C1-14A
Contact type: Standard load (250 VAC, 2 A; 125 VDC 0.4 A).
Operation: Momentary operation (Self-resetting).
Output: DPDT.
Lighting: Incandescent lamp, 14 VAC/VDC.
Operation Unit color symbol: Enter the desired color symbol for the,
Pushbutton in @ R (Red); Y (Yellow); G (Green); A (Blue); W (White).
Pushbutton Switch Series with.
Square 40-mm Body.
Combines miniature design with distinct but soft sense of operation.
Easy panel mounting from the front and simple lamp replacement.
without tools.
