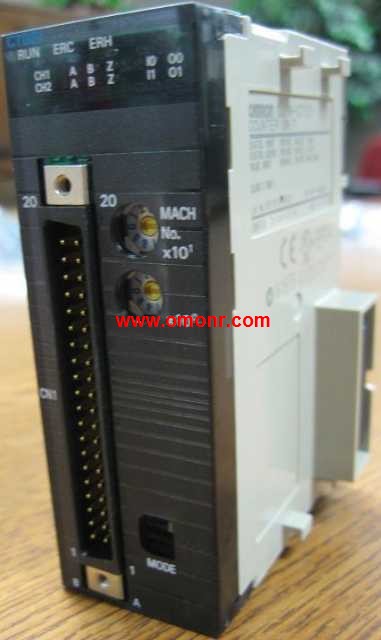

CJ1W-CT021 | OMRON High-speed Counter Unit CJ1W-CT021
OMRON CJ1W-CT021 Manual And Instructions
CJ1W-CT021 datasheetPDF datasheet
CJ1W-CT021 PROGRAMMING MANUAL
CJ1W-CT021 PROGRAMMING MANUAL
OMRON CJ1W-CT021 Product information and technical parameters：
Brand: OMRON
Name: High-speed Counter Unit
Model: CJ1W-CT021
Unit classification: CJ1 Special I/O Units.
Product name: Highspeed Counter Unit.
Specifications; Countable channels: 2 ,
Encoder A and B inputs, pulse input Z signals;
Open collector Input voltage: 5VDC, 12V, or 24V,
(5V and 12V are each for one axis only.) ,
Max. counting rate, 50kHz.
No. of unit numbers allocated: 4.
Current consumption: 5V, 0.28A; 24V, --.
Standards: UC1, N, L, CE.
High-Speed, Flexible Control With A,
Wide Array of Features.
Equipped with 2 Counters and counts ,
over a maximum binary range of 32-bits.
Accepting input pulse frequencies of up,
to 500 kHz allows precise control of fast motions.
The Unit is equipped with 2 Digital Inputs,
2 Digital Outputs and 30 Soft Outputs.
A maximum response time of 0.5 ms guarantees,
high-speed closed loop control of applications.
...More relevant models >>>>
