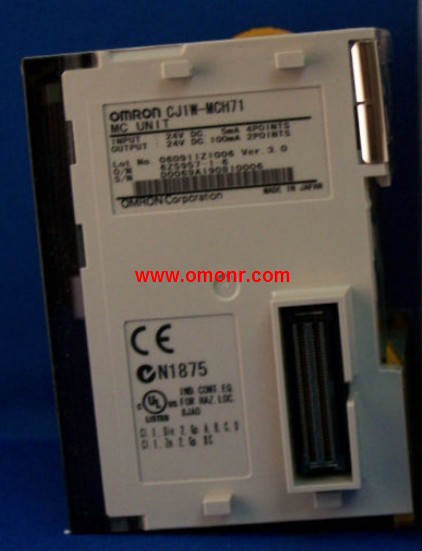

CJ1W-MCH71 | OMRON Motion Control Unit with MECHATROLINK-II interface CJ1W-MCH71
OMRON CJ1W-MCH71 Manual And Instructions
CJ1W-MCH71 datasheetPDF datasheet
CJ1W-MCH71 Installation Guide
OMRON CJ1W-MCH71 Product information and technical parameters：
Brand: OMRON
Name: Motion Control Unit with MECHATROLINK-II interface
Model: CJ1W-MCH71
Unit classification: CJ1 CPU Bus Units.
Product name: Motion Control Unit with,
MECHA TROLINK-II interface.
Specifications: Control modes : Position,
speed, or torque control via MECHATROLINK-II,
Control axes : 32 axes max. (30 physical axes,
2 virtua axes).
Internal programming language: Special motion contro
language
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.60A; 24V, --.
Standards: UC1, CE.
Improve Equipment Design Efficiency,
and Shorten Tact Time.
Control Servos for up to 16 axes in,
a motion network with one Position,
Control Unit that supports MECHATROLINK-II.
MECHATROLINK-II is a registered trademark,
of the MECHATROLINK Members Association.
