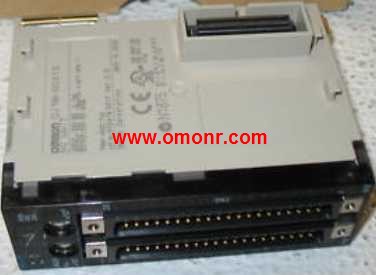

CJ1W-NC413 | OMRON Position Control Units CJ1W-NC413
OMRON CJ1W-NC413 Manual And Instructions
CJ1W-NC413 datasheetPDF datasheet
CJ1W-NC413 PROGRAMMING MANUAL
OMRON CJ1W-NC413 Product information and technical parameters：
Brand: OMRON
Name: Position Control Units
Model: CJ1W-NC413
Unit classification: CJ1 Special I/O Units.
name: Position control unit.
Specifications; Control method/Control,
output interface:Open-loop control by pulse,
train output/Open-collector output;
Number of control axes : 4 axes.
No. of unit numbers allocated: 2.
Current consumption: 5V, 0.36A; 24V, --.
Standards: UC1, CE.
High-speed, High-precision positioning,
with 1, 2, or 4 axes.
Versatile functions and superb performance,
enable the construction of compact,
high-performance machines.
With its ultra-compact size of 31 × 90mm (W×H),
this highly space-efficient Position Control Unit,
(PCU) enables up to 4 axes of motor control.
