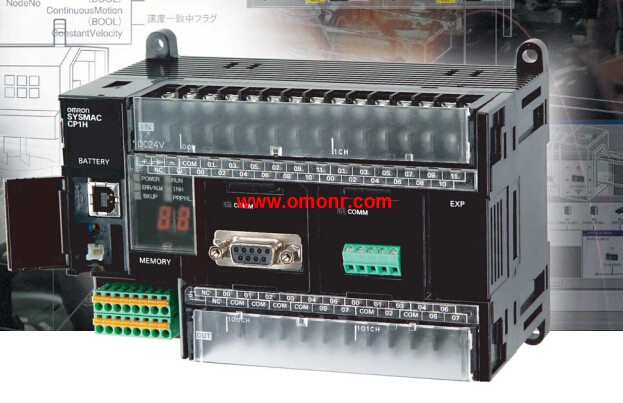

CP1H-Y20DT-D | OMRON CP1H CPU Unit CP1H-Y20DT-D
OMRON CP1H-Y20DT-D Manual And Instructions
CP1H-Y20DT-D datasheetPDF datasheet
CP1H-Y20DT-D OPERATION MANUAL
CP1H-Y20DT-D OPERATION MANUAL
CP1H-Y20DT-D Communications CommandsHOST CONNECTION MANUAL
CP1H-Y20DT-D Communications CommandsREFERENCE MANUAL
OMRON CP1H-Y20DT-D Product information and technical parameters：
Brand: OMRON
Name: CP1H CPU Unit
Model: CP1H-Y20DT-D
CPU Unit: CP1H-Y CPU Units.
Specifications: CPU type, Memory capacity: 20K steps,
High-speed counters: 1 MHz, 2 axes 100 kHz, 2 axes Pulse,
outputs: 1 MHz, 2 axes 100 kHz, 2 axes;
Power supply, DC power supply; Output method, Transistor output (sinking);
Inputs, 12+line-driver input, 2 axes; Output, 8+ine-driver output, 2 axes.
Standards: UC1, N, L, CE.
4 Axis Position Control and Comprehensive Programmable Controller.
The CP1H-X with pulse outputs for 4 axes.
The CP1H-Y with 1-MHz pulse I/O.
The CP1H-XA with pulse outputs for 4 axes and built-in analog I/O.
