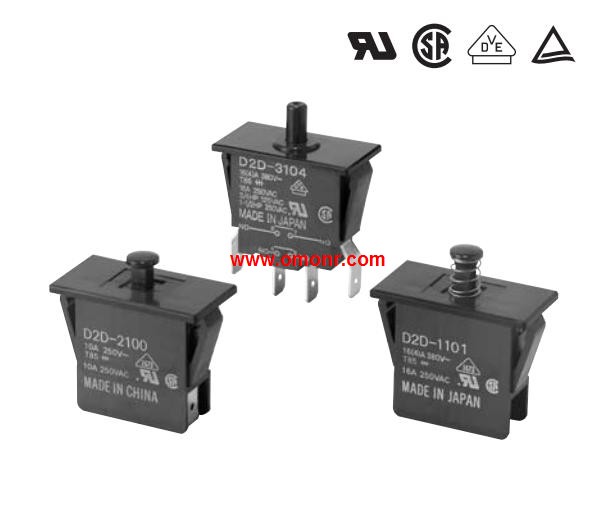

D2D-1101 | OMRON Power/Door Switch D2D-1101
OMRON D2D-1101 Manual And Instructions
D2D-1101 datasheetPDF datasheet
OMRON D2D-1101 Product information and technical parameters：
Brand: OMRON
Name: Power/Door Switch
Model: D2D-1101
Type: Standard.
Contact gap: 3 mm min.
Mounting: Panel mounting.
Contact form: SPST-NO.
Door Interlock Power.
Switch with Minimum.
Contact gap of 3 mm.
Offers the minimum contact gap of 3 mm required.
for power switches as standard equipment.
Safety considerations include a double return spring,
and direct drive positive contact opening feature.
Pull-on lock model for easy maintenance is also available.
