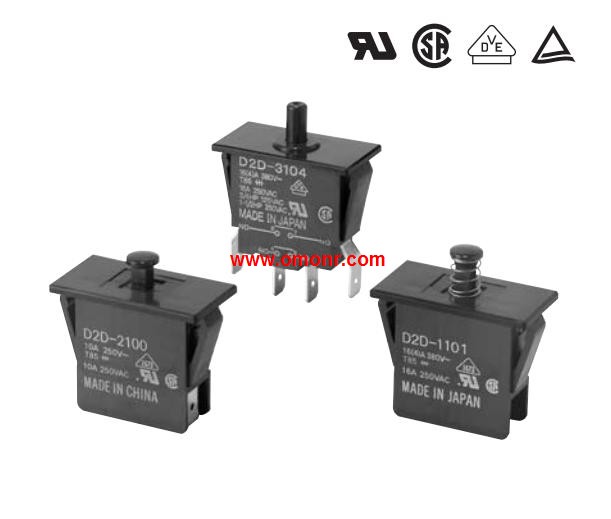

D2D-2100 | OMRON Power/Door Switch D2D-2100
OMRON D2D-2100 Manual And Instructions
D2D-2100 datasheetPDF datasheet

OMRON D2D-2100 Product information and technical parameters:
Brand: OMRON
Name: Power/Door Switch
Model: D2D-2100
Type: Pull-on lock.
Contact gap: 1 mm.
Mounting: Panel mounting.
Contact form: SPST-NO+SPST-NC.
Door Interlock Power.
Switch with Minimum.
Contact gap of 3 mm.
Offers the minimum contact gap of 3 mm required.
for power switches as standard equipment.
Safety considerations include a double return spring,
and direct drive positive contact opening feature.
Pull-on lock model for easy maintenance is also available.

Appearance: Square/Projection type LED voltage-reduction lighting,
(with Voltage Reduction Unit) A22L-D.
Output: SPST-NC.
Lighting: LED.
Operating voltage: 200 VAC.
Operation: Momentary operation (self-resetting).
Illumination color: R (red); Y (yellow); G (green); W (white); A (blue).
Install in 22-dia OMRON D2D-2100. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit D2D-2100
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals OMRON D2D-2100.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Type: High-temperature; 8-pin.
Space-saving Design Ideal for Control Panel.
Downsizing. Easy Maintenance.
Compact: 49.4 × 38 × 84 mm (H×W×D).
Easy identification of operating status with LED operation indicator.
Independent DPDT contacts on 11-Pin Models.
CE marking and UL/CSA compliance. Appearance: Round/Projection type A22-T OMRON D2D-2100.
Output: SPST-NC.
Operation: Momentary operation (self-resetting).
Illumination color: R (red); Y (yellow); G (green);
W (white); A (blue); B (black).
Install in 22-dia. or 25-dia. Panel Cutout.
(When Using a Ring).
Lever for easily mounting and removing the Switch Unit.
Increase wiring efficiency with three-row mounting of Switch Blocks.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mounted using either open-type (fork-type) or closed-type.
(round-type) crimp terminals.
IP65 oil resistance (non-lighted models).
IP65 (lighted models). Appearance: Knob-type Selector Switch A22W,
LED lighting (without Voltage Reduction Unit).
Number of notches: 3 notches.
Resetting method: Manual.
Output: SPST-NO + SPST-NO.
Operating voltage: 12 VAC/VDC.
Illumination color: R (red); Y (yellow); G (green); A (blue). D2D-2100.
Install in 22-dia. or 25-dia. Panel Cutout.
Lever for easily mounting and removing the Switch Unit.
Finger protection mechanism on Switch Unit provided as a standard feature.
Use 25-dia. ring to install in 25-dia. panel cutouts.
Mountted using either open-type (fork-type) or closed-type,
(round-type) crimp terminals D2D-2100.
IP65 oil resistance (non-lighted models).
IP65 (lighted models).
