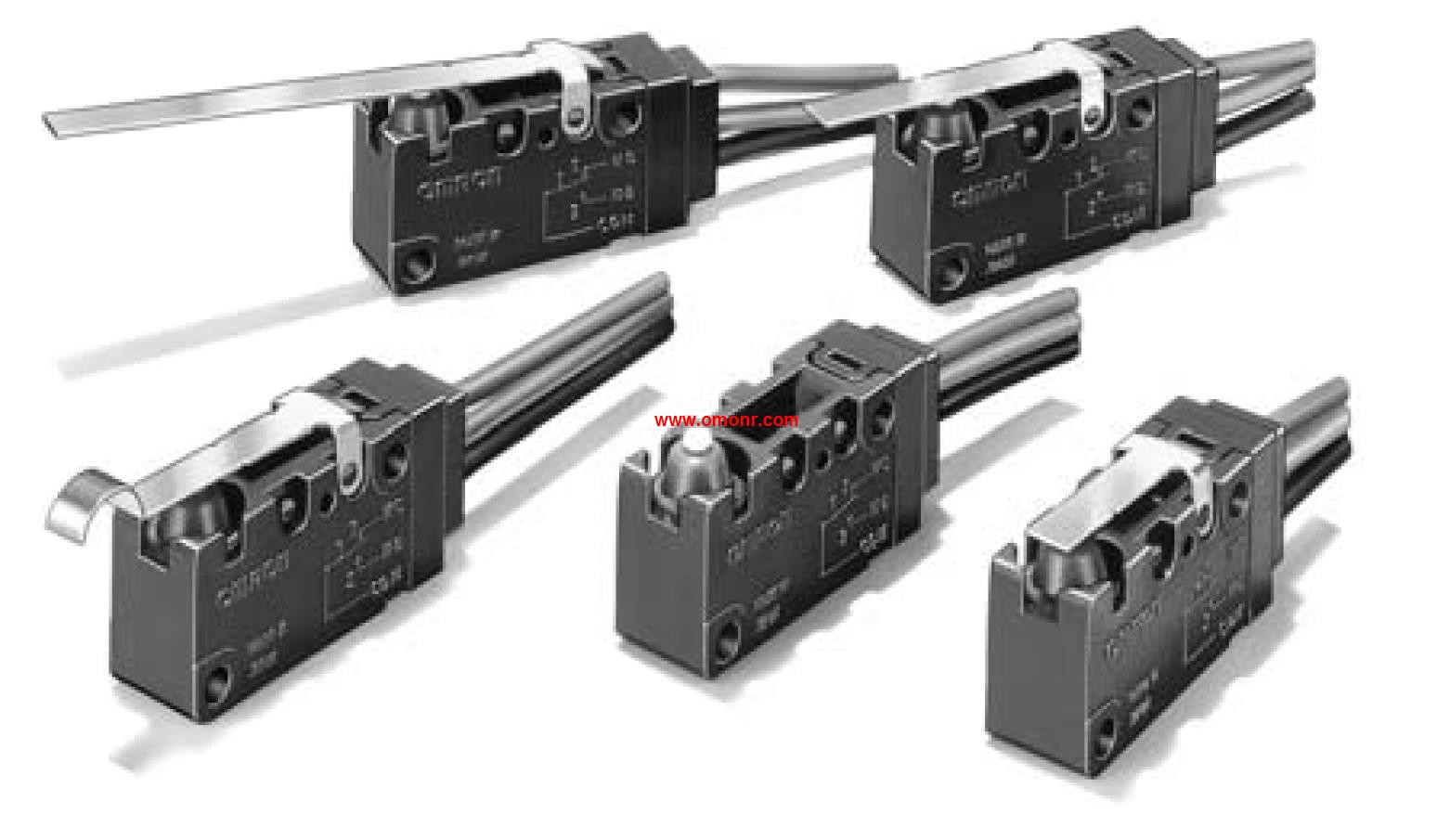

D2SW-01L3H | OMRON Sealed Subminiature Basic Switch D2SW-01L3H
OMRON D2SW-01L3H Manual And Instructions
D2SW-01L3H datasheetPDF datasheet
OMRON D2SW-01L3H Product information and technical parameters：
Brand: OMRON
Name: Sealed Subminiature Basic Switch
Model: D2SW-01L3H
Ratings: 0.1 A.
Actuator: Simulated roller lever.
Terminals: Solder terminals.
Contact form: SPDT.
Sealed Subminiature Basic.
Switch Conforming to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing,
making this switch ideal for places subject to,
water spray or excessive dust.
Ideal for automobiles, automatic vending,
machines, refrigerators, ice-making equipment,
bath equipment, hot-water supply systems, air,
conditioners, and industrial equipments, which,
require high environmental resistance.
Models available with UL, CSA, and VDE safety,
standard compliance.
