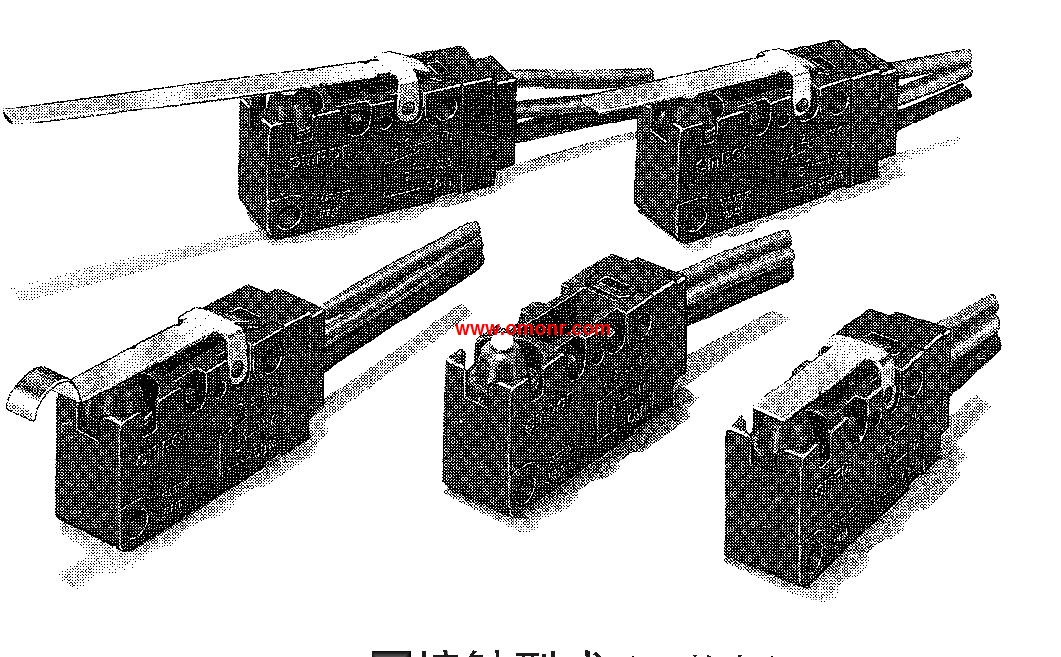

D2VW-01L1A-1M | OMRON Sealed Miniature Basic Switch D2VW-01L1A-1M
OMRON D2VW-01L1A-1M Manual And Instructions
D2VW-01L1A-1M datasheetPDF datasheet
OMRON D2VW-01L1A-1M Product information and technical parameters：
Brand: OMRON
Name: Sealed Miniature Basic Switch
Model: D2VW-01L1A-1M
Ratings: 0.1 A.
Actuator: Short hinge lever.
Terminals: Molded lead wires (300 mm).
Contact form: SPDT.
Sealed Miniature Basic.
Switch Conforms to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing, making.
this switch ideal for places subject to water spray.
or excessive dust.
V-series internal mechanism assures high.
precision and durability. The mounting is the,
same as of the V models.
Ideal for automobiles, agricultural machines,
large-scale home appliances, and industrial,
equipment, which require high environmental resistance.
