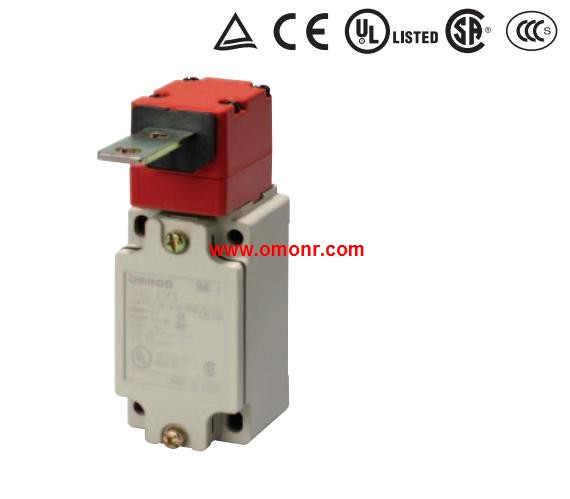

D4BS-1AFS | OMRON Safety-door Switch D4BS-1AFS
OMRON D4BS-1AFS Manual And Instructions
D4BS-1AFS datasheetPDF datasheet
D4BS-1AFS INSTRUCTION sheet
OMRON D4BS-1AFS Product information and technical parameters：
Brand: OMRON
Name: Safety-door Switch
Model: D4BS-1AFS
Type: 1-conduit.
Mounting direction: Front-side mounting.
Conduit size: Pg13.5.
2NC (Slow-action).
The Special Operation Key Activates a Direct.
Opening Mechanism to Open the Contacts.
and Shut Off Control Circuits when Protective.
Doors Are Opened on Machine Tools or Other.
Equipment.
Conforms to EN (TÜV) standards corresponding to the CE marking.
Certified by UL and CSA standards.
The Switch contact is opened by a direct opening mechanism,
(NC contacts only) when the protective cover is opened. The EN-certified.
direct opening mechanism is indicated by on the Switch.
Malfunctions and false operation prevented by special Operation Key.
Wide temperature range specifications: −40 to 80°C.
Degree of protection of the switch box: IP67 (EN60947-5-1).
