LK Automation Limited
Brand:
OMRON

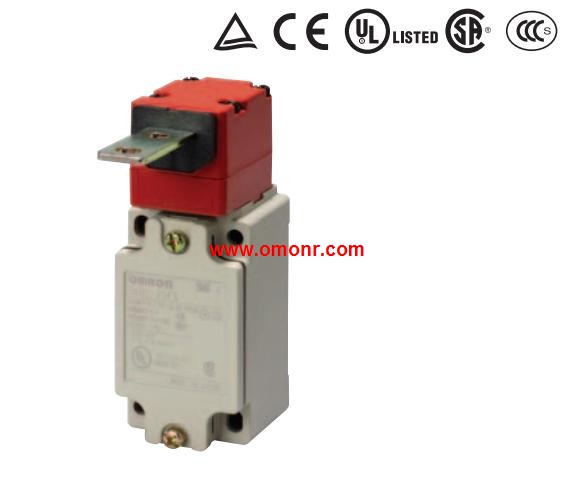

D4BS-25FS | OMRON Safety-door Switch D4BS-25FS
OMRON D4BS-25FS Manual And Instructions
D4BS-25FS datasheetPDF datasheet
D4BS-25FS INSTRUCTION sheet
OMRON D4BS-25FS Product information and technical parameters：
Brand: OMRON
Name: Safety-door Switch
Model: D4BS-25FS
Type: 1-conduit.
Mounting direction: Front-side mounting.
Conduit size: G1/2.
1NC/1NO (Slow-action).
The Special Operation Key Activates a Direct.
Opening Mechanism to Open the Contacts.
and Shut Off Control Circuits when Protective.
Doors Are Opened on Machine Tools or Other.
Equipment.
Conforms to EN (TÜV) standards corresponding to the CE marking.
Certified by UL and CSA standards.
The Switch contact is opened by a direct opening mechanism,
(NC contacts only) when the protective cover is opened. The EN-certified.
direct opening mechanism is indicated by on the Switch.
Malfunctions and false operation prevented by special Operation Key.
Wide temperature range specifications: −40 to 80°C.
Degree of protection of the switch box: IP67 (EN60947-5-1).
