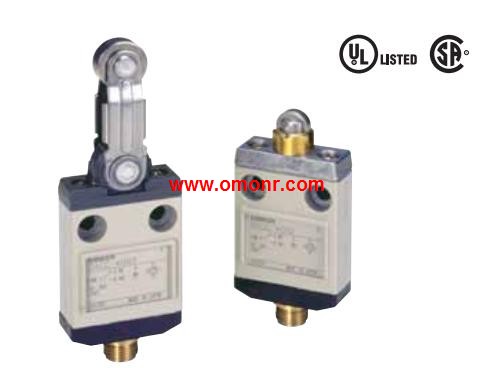

D4CC-3001 | OMRON Miniature Limit Switch D4CC-3001
OMRON D4CC-3001 Manual And Instructions
D4CC-3001 datasheetPDF datasheet
OMRON D4CC-3001 Product information and technical parameters：
Brand: OMRON
Name: Miniature Limit Switch
Model: D4CC-3001
Ratings: 1 A at 30 VDC.
LED indicator: Without indicator.
Actuator: Pin plunger.
Many Models Including Roller Lever.
Switches are Only 16-mm Thick with Connector.
New center roller lever models that enable ganged mounting.
of up to 6 Switches.
Cable connectors for easy Switch replacement.
Triple-seal construction to provide IEC IP67 degree of protection.
Operation indicators available for easy monitoring,
(standard indicator is lit when Switch is not operating).
Approved by UL and CSA.
(Ask your OMRON representative for Information on approved models.)
