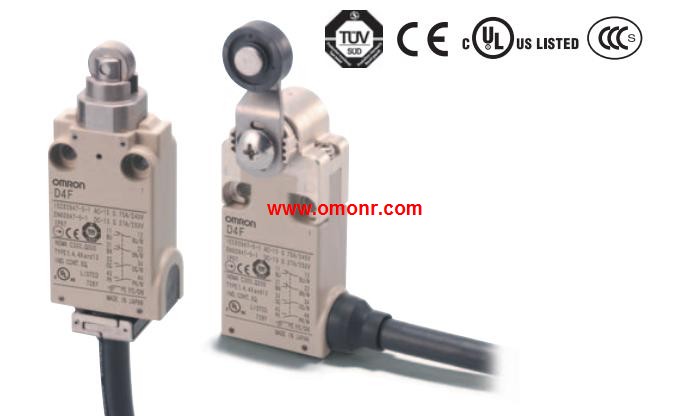

D4F-102-1R | OMRON Small Safety Limit Switch D4F-102-1R
OMRON D4F-102-1R Manual And Instructions
D4F-102-1R datasheetPDF datasheet
D4F-102-1R INSTRUCTION sheet
OMRON D4F-102-1R Product information and technical parameters：
Brand: OMRON
Name: Small Safety Limit Switch
Model: D4F-102-1R
Actuator: Roller plunger (Metal roller).
Cable length: 1 m.
Pull-outing direction of cable: Horizontal.
Built-in switch: 1NC/1NO (slow-action).
Smallest Class of Safety Limit Switches the World.
The world''s smallest limit switch with a direct opening,
mechanism (four-contact construction model).
High-sensitivity safety limit switch.
Built-in switches with two- or four-contact construction are available.
Degree of protection: IP67.
Conforms to EN115-1, EN81-1 and EN81-2.
(slow-action models only).
Certified standards: UL, EN (TÜV), and CCC.
