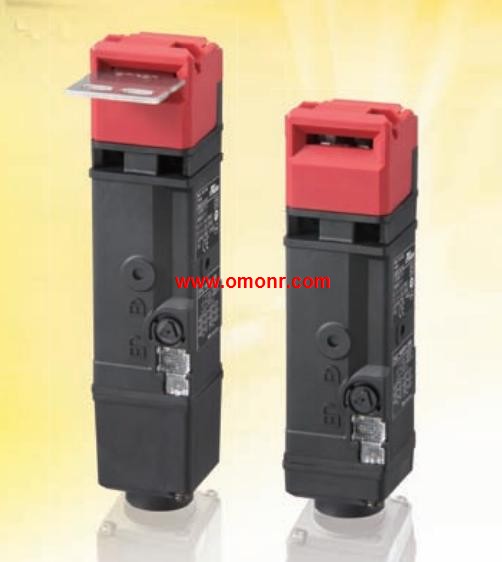

D4SL-N3TFG-N | OMRON Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key D4SL-N3TFG-N
OMRON D4SL-N3TFG-N Manual And Instructions
D4SL-N3TFG-N datasheetPDF datasheet
D4SL-N3TFG-N INSTRUCTION sheet
OMRON D4SL-N3TFG-N Product information and technical parameters：
Brand: OMRON
Name: Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key
Model: D4SL-N3TFG-N
Release Key Type: Standard (metal).
Wiring method: Connector.
Solenoid voltage/Indicator: 24VDC (without indicator).
Lock and release type: Solenoid lock Mechanical release.
Contact configuration (door open/closed detection switch,
and lock monitor switch contacts): 4-contact Model,
Insert the built-in switch (A, B, C, D, S, T, U or V) into the blank @.
Conduit size (See Note.): 1/2-14NPT.
World''s smallest Class 6-contact Guard Lock.
Safety-door Switch.
.
Wiring time is reduced with two types of wiring.
methods capable of one-touch attachment and removal.
A wide variety of built-in switches can be used for various devices.
(4-, 5-, and 6-contact models are available).
Key holding force of 1,300 N.
It is possible to change the key insertion point.
without detaching the head.
Drive solenoids directly from the Controller.
.
Lockout Key to prevent workers from becoming.
trapped inside the hazardous area.
The vertical D4SL Guard Lock Safety-door Switch,
can be easily mounted on 40 × 40 mm aluminum frames.
The plastic material makes the Slide Key suitable,
for lightweight doors.
