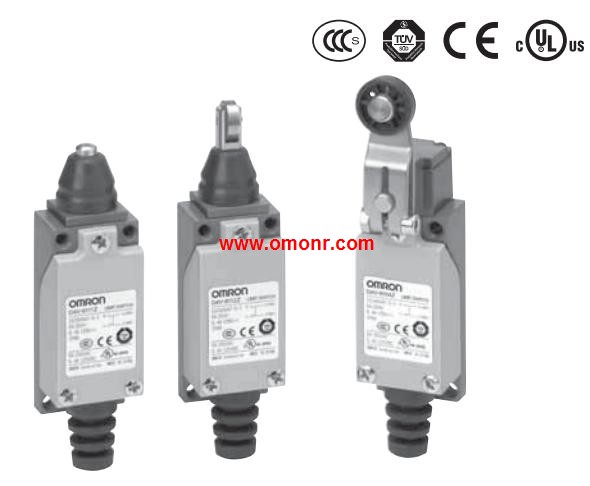

D4V-8169Z | OMRON Small Limit Switch D4V-8169Z
OMRON D4V-8169Z Manual And Instructions
D4V-8169Z datasheetPDF datasheet
OMRON D4V-8169Z Product information and technical parameters：
Brand: OMRON
Name: Small Limit Switch
Model: D4V-8169Z
Actuator type: Wire spring.
Compact Vertical Models Sized for Asian.
Standards.
Compact new design approximately 1/3 the size of OMRON,
vertical Limit Switches.
Structure enables the terminal section to be fully opened for,
easy wiring.
RoHS complaint.
Degree of protection: IP65.
...More relevant models >>>>
