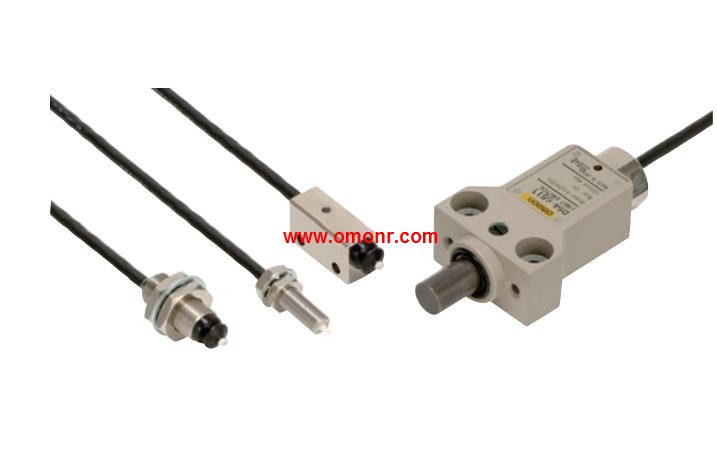

D5A-3210 | OMRON High-precision Switch D5A-3210
OMRON D5A-3210 Manual And Instructions
D5A-3210 datasheetPDF datasheet
OMRON D5A-3210 Product information and technical parameters：
Brand: OMRON
Name: High-precision Switch
Model: D5A-3210
Actuator: Pin plunger.
Type: M8.
Operation Indicator: Provided.
Repeat accuracy: 1 µm max.
Operating force OF max: 0.49 N.
Cable lead outlet: Lead outlet, Pre-wired; Length, 1 m.
Degree of protection: IP67.
High-precision Switch for Detecting Micron-unit,
Displacement.
Ideal for detecting and measuring wear of cutting,
tools or for original point of work.
Ceramic plungers on M5, M8, and slim models for,
superior abrasion resistance and resistance to,
temperature changes.
Direct input possible to microprocessors and,
programmable controllers.
A version with screw-type cable connector available,
for easy installation and maintenance.
