E2E-S04SR8-CJ-C1 0.3M | OMRON Small-diameter Proximity Sensor E2E-S04SR8-CJ-C1 0.3M
OMRON E2E-S04SR8-CJ-C1 0.3M Manual And Instructions
E2E-S04SR8-CJ-C1 0.3M datasheetPDF datasheet
OMRON E2E-S04SR8-CJ-C1 0.3M Product information and technical parameters：
Brand: OMRON
Name: Small-diameter Proximity Sensor
Model: E2E-S04SR8-CJ-C1 0.3M
Appearance: M4.
Sensing distance: 0.8 mm.
Connecting method: M8 Pre-wired Connector Models (0.3 m).
Cable specifications: PVC(oil-resistant).
Operation mode: NO.
Wire color /pin arrangement: 1: +V, 3: 0 V, 4: Control output.
Model: NPN output.

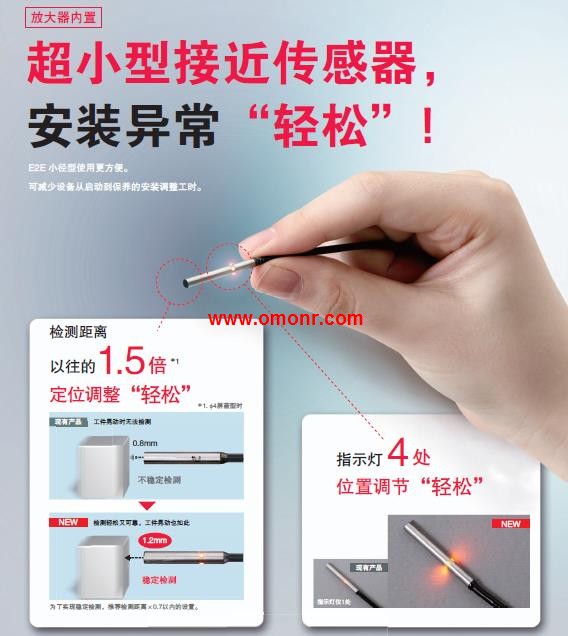

Ultra small size, but surprisingly easy installation!
With the addition of M4, 5.4-dia., 6.5-dia. size, unshielded,
pre-wired connector model, and connector model, a total of,
108 model variations are available.
High-speed response frequency stably detects moving,
objects: 5 kHz max.
Four indicator lamps for easier indicator positioning.
Special mounting brackets reduce time and efforts for,
installation.
Protective Stainless-steel Spiral Tube against wire,
breakage is available (M4, M5 only).
Models also available with standard cables that are 5 m long,
or with robot (bending-resistant) cables.
...More relevant models >>>>
