Appearance: Shielded, 5.4 dia.
Sensing distance: 1.5 mm.
Model: Operation mode, NC.
Subminiature Sensors with.
Long-distance Detection.

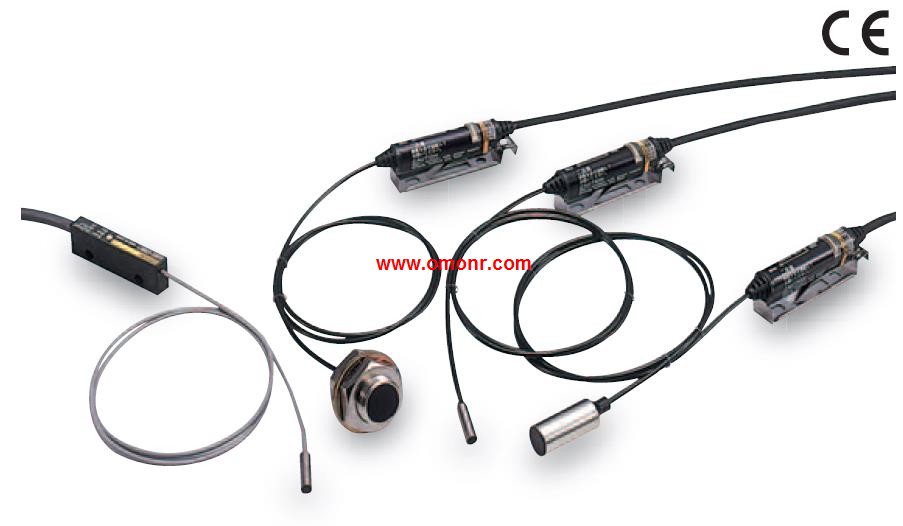

Shielded Sensor Heads from 3-mm to M12 diameters that,
can be embedded in metal.
Robotics cables provided as a standard feature (DC 2-Wire Models).
Indicator provided in Amplifier cable for easy confirmation of operation OMRON E2EC-X4D2 2M.
Power supply range of 5 to 24 VDC for DC 3-Wire Models E2EC-X4D2 2M Sensing method: Reflective model(for mark detection).
Connection method: Pre-wired (2 m).
Sensing distance: 35±5 mm.
Extremely thin beam ideal for detection of minute objects and marks.
Ideal for detection of small objects and slight color differences.
Bad mark detection OMRON E2EC-X4D2 2M.
Detection of thin wire of 200 μ.
Detection of slight level differences. Appearance: Unshielded.
Sensing distance: 5 mm.
Model: Operation mode, NO.
Standard Flat Sensors in.
Many Different Variations.
Only 6 mm thick yet provides a sensing,
distance of 3 mm (TL-W3MC1).
Aluminum die-cast models also available. Appearance: 3 dia.
Sensing distance: 2 mm.
Connecting method: M8 Pre-wired Connector Models (0 OMRON E2EC-X4D2 2M. 3 m).
Cable specifications: PVC (oil-resistant).
Operation mode: NC.
Wire color /pin arrangement: 1: +V, 3: 0 V, 4: Control output.
Model: NPN output.
Ultra small size, but surprisingly easy installation!
With the addition of M4, 5.4-dia., 6.5-dia. size, unshielded,
pre-wired connector model, and connector model, a total of,
108 model variations are available.
High-speed response frequency stably detects moving,
objects: 5 kHz max.
Four indicator lamps for easier indicator positioning.
Special mounting brackets reduce time and efforts for,
installation.
Protective Stainless-steel Spiral Tube against wire,
breakage is available (M4, M5 only).
Models also available with standard cables that are 5 m long,
or with robot (bending-resistant) cables. Size: M12, Non-shielded.
Sensing distance: 8.0 mm.
Connection: Pre-wired.
Body material: Brass.
Thread length (overall length): 56 (72).
Output configuuration: PNP E2EC-X4D2 2M.
Operation mode NO.
Safe Mounting with Greater.
Sensing Distance.
Ensures a sensing distance approximately 1.5 to 2,
times larger than that of any conventional OMRON Sensor.
Problems such as the collision of workpiecees are eliminated E2EC-X4D2 2M.
Full range of standard sizes (M8, M12, M18 and,
M30; both long and short barrels).
Modular construction simplifies customization.
