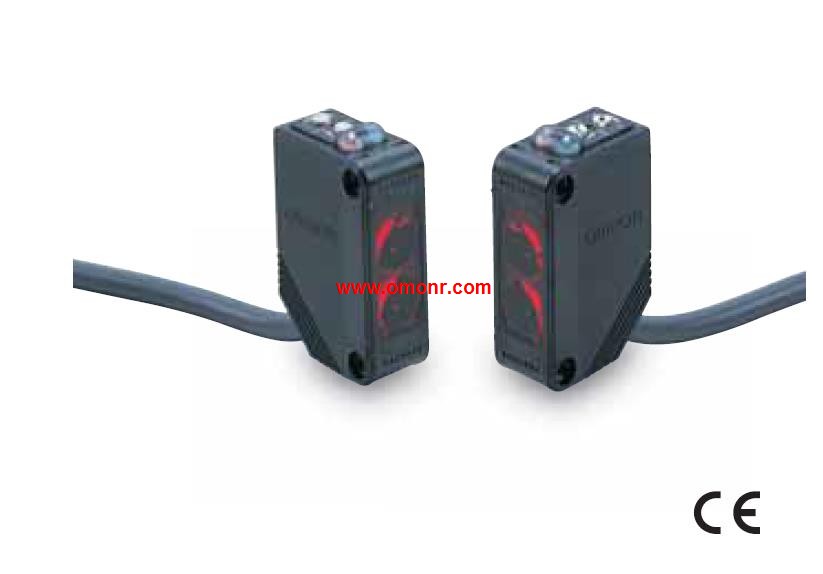

E3Z-L86 | OMRON Narrow-beam Photoelectric Sensor E3Z-L86
OMRON E3Z-L86 Manual And Instructions
E3Z-L86 datasheetPDF datasheet
E3Z-L86 INSTRUCTION sheet
OMRON E3Z-L86 Product information and technical parameters：
Brand: OMRON
Name: Narrow-beam Photoelectric Sensor
Model: E3Z-L86
Sensing method: Narrow-beam reflective.
Connection method: Connector (M8, 4pins).
Sensing distance: 90±30 mm.
Model: PNP output.
Small 2.5-mm-diameter Spot Ideal for.
Detecting Small Workpieces.
Tiny workpieces as little as 0.1 mm in diameter can be,
detected with the 2.5-mm-dia. spot.
The narrow beam enables sensing from small slots or holes.
The small spot of light enables visual checking of sensing,
spot position.
IP67 degree of protection, mutual interference prevention,
and EN standard compliance.
...More relevant models >>>>
E3Z-L86 datasheetPDF datasheet
E3Z-L86 INSTRUCTION sheet
OMRON E3Z-L86 Product information and technical parameters：
Brand: OMRON
Name: Narrow-beam Photoelectric Sensor
Model: E3Z-L86
Sensing method: Narrow-beam reflective.
Connection method: Connector (M8, 4pins).
Sensing distance: 90±30 mm.
Model: PNP output.
Small 2.5-mm-diameter Spot Ideal for.
Detecting Small Workpieces.
Tiny workpieces as little as 0.1 mm in diameter can be,
detected with the 2.5-mm-dia. spot.
The narrow beam enables sensing from small slots or holes.
The small spot of light enables visual checking of sensing,
spot position.
IP67 degree of protection, mutual interference prevention,
and EN standard compliance.
