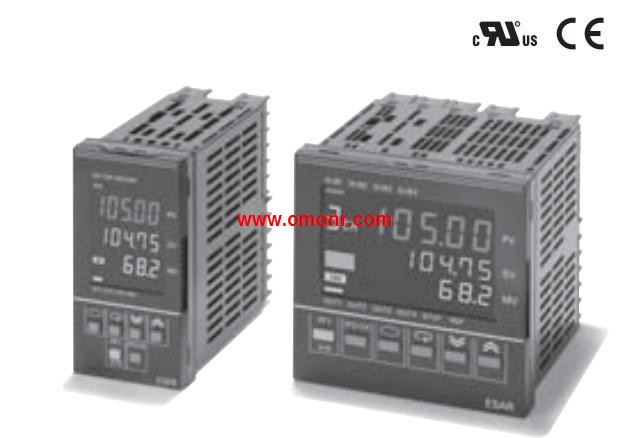

E5AR-QQ43DW-FLK | OMRON Digital Controllers E5AR-QQ43DW-FLK
OMRON E5AR-QQ43DW-FLK Manual And Instructions
E5AR-QQ43DW-FLK datasheetPDF datasheet
E5AR-QQ43DW-FLK OPERATION MANUAL
E5AR-QQ43DW-FLK User's Manual
E5AR-QQ43DW-FLK INSTRUCTION Manual
OMRON E5AR-QQ43DW-FLK Product information and technical parameters：
Brand: OMRON
Name: Digital Controllers
Model: E5AR-QQ43DW-FLK
Size: 96 × 96 mm.
Control type: 2-loop control.
Control mode: 2-loop standard control, 2-loop heating and cooling control,
Single-loop cascade control, Single-loop control with remote SP,
Single-loop proportional control.
Outputs(control/transfer): 4 points: Pulse voltage (2 points) and,
Pulse voltage/current (2 points).
Optional functions: Auxiliary outputs (SUB), 4;
Event inputs, 4; Serial communications, RS-485.
E5AR Digital Controllers offer high speed,
high precision, and multiple I/O and use a 5-digit,
3-row LCD display for high visual clarity.
A short sampling period of 50 ms enables use in applications,
requiring high-speed response.
PV, SP, and MV data is displayed simultaneously in a 3-row,
negative LCD display with a backlight.
Multiloop control, cascade control, and proportional control are,
possible with a single Controller.
When using models with CompoWay/F communications, initial,
settings can be downloaded and settings can be masked using,
Support Software (CX-Thermo version 4.0 or higher).
Equipped with calculation functions as a standard (e.g., square,
root calculation and broken-line approximation).
DeviceNet Communications.
Data setting and monitoring can be performed without special programming.
