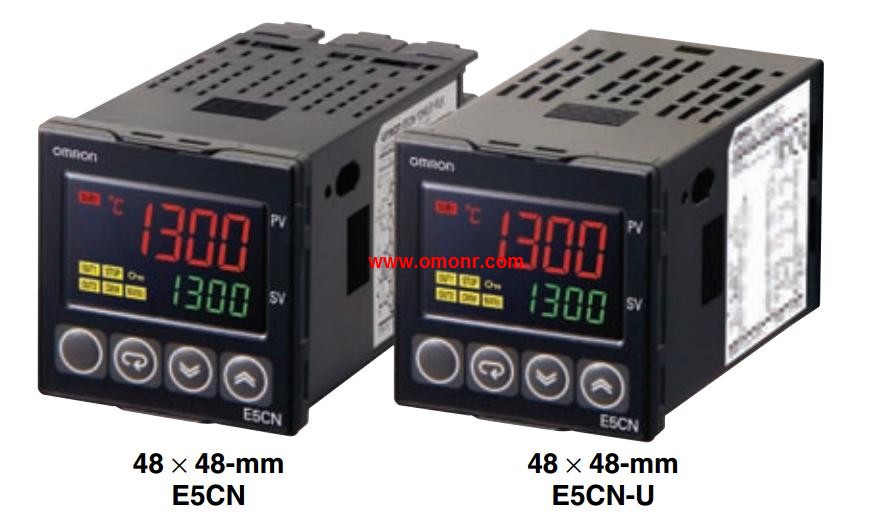

E5CN-Q2H03TD-W-FLK | OMRON Foundation type temperature controller E5CN-Q2H03TD-W-FLK
OMRON E5CN-Q2H03TD-W-FLK Manual And Instructions
E5CN-Q2H03TD-W-FLK datasheetPDF datasheet
E5CN-Q2H03TD-W-FLK datasheetPDF datasheet
E5CN-Q2H03TD-W-FLK Basic TypeBasic Type
E5CN-Q2H03TD-W-FLK User's Manual
E5CN-Q2H03TD-W-FLK User's Manual
E5CN-Q2H03TD-W-FLK Communications FunctionsUser's Manual
E5CN-Q2H03TD-W-FLK USER'S MANUAL
E5CN-Q2H03TD-W-FLK Communications FunctionsUser's Manual
E5CN-Q2H03TD-W-FLK USER'S MANUAL
OMRON E5CN-Q2H03TD-W-FLK Product information and technical parameters：
Brand: OMRON
Name: Foundation type temperature controller
Model: E5CN-Q2H03TD-W-FLK
The main body: terminal type, temperature input type.
Type: control output 1 point type (power AC/DC24V).
Shell color: silver.
Control output: voltage output (SSR driver).
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
Heater with broken wire, SSR fault, heater over current detection function /ES1B power supply: single phase heater with detection function.
Event input points: -.
Transfer output: -.
Communication: RS-485.
48mm general thermostat has been upgraded & function / performance upgrade.
Indicates that the accuracy is increased and the preventive maintenance function is increased,
Further performance improvement.
E5CN-U (insert type) add analog input and current output type.
Add PV/SV status display function, convenient to check the state of the thermostat (automatic / manual, RUN/STOP, alarm),
Interactive display PV/SV.
Increase the number of control output ON/OFF counting function, can prevent the maintenance of temperature controller internal relay.
...More relevant models >>>>
