E5CSL-QP | OMRON Thermostat E5CSL-QP
OMRON E5CSL-QP Manual And Instructions
E5CSL-QP INSTRUCTION Manual
E5CSL-QP Instruction Manual
OMRON E5CSL-QP Product information and technical parameters：
Brand: OMRON
Name: Thermostat
Model: E5CSL-QP

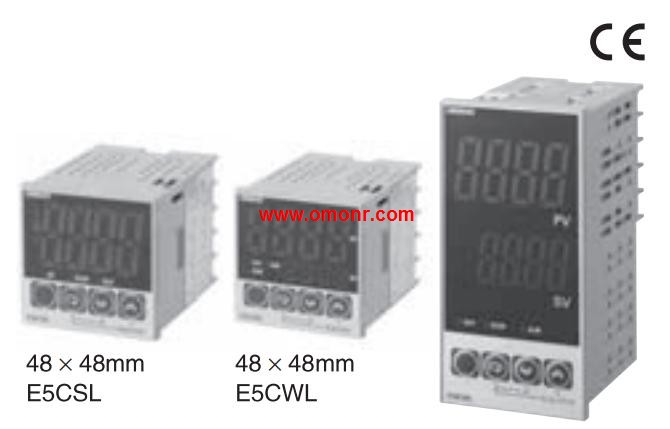

Size: DIN 1/16, 48 X 48 x 60mm.
Power supply voltage: AC100 ~ 240V.
Input type: Platinum resistance.
Alarm points: -.
Control output: voltage output (for driving SSR).
Simple new temperature controller, easy to achieve temperature control.
Good visibility (character height E5CSL:21.7mm, E5CWL:16.2mm (PV), E5EWL:20mm (PV)).
From the front panel depth: 60mm.
Parameter is less, set simple.
Sampling time was reduced to 250ms.
