Brand: OMRON
Go Back >> Product Catalogues
E5EC-TRX4DSM-080 | OMRON Digital temperature controller program E5EC-TRX4DSM-080
OMRON E5EC-TRX4DSM-080 Manual And Instructions
E5EC-TRX4DSM-080 datasheetPDF datasheet
E5EC-TRX4DSM-080 datasheetPDF datasheet
E5EC-TRX4DSM-080 RS-485 CompoWay/Flnstruction Manual
E5EC-TRX4DSM-080 Communications Manual
E5EC-TRX4DSM-080 User's Manual
E5EC-TRX4DSM-080 INSTRUCTION Manual

OMRON E5EC-TRX4DSM-080 Product information and technical parameters:
Brand: OMRON
Name: Digital temperature controller program
Model: E5EC-TRX4DSM-080
Size: 48 x 96mm.
Control output 1: relay.
Auxiliary (alarm) output: 4.
Transfer output: have.
Event input: 4.
Communication: RS-485.
Disconnection detection: 2.
Power supply voltage: DC24V/AC24V.

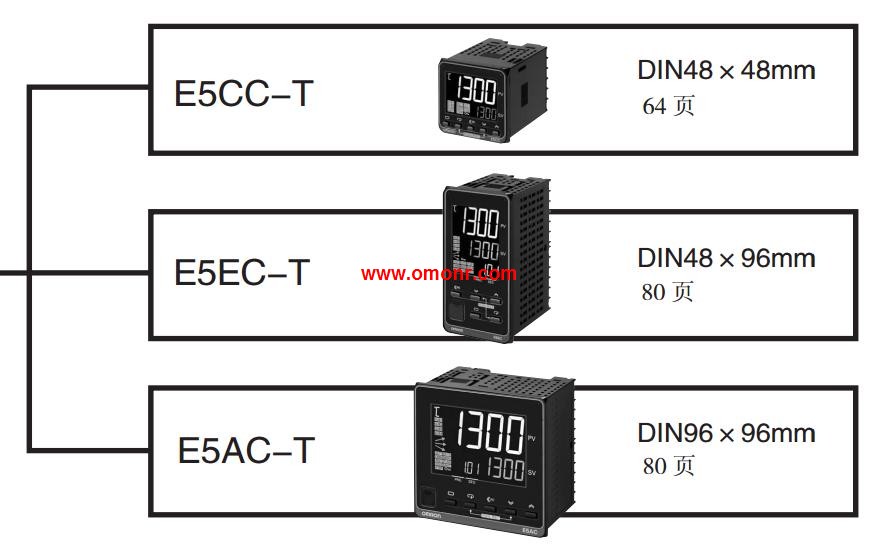

E5 - C series of new products program.
Maximum 256 segment of the program capacity,
Support for multiple applications.
Can be set up to 8 procedures (mode) x 32 (step) procedure.
The use of high 25mm (E5AC-T), 18mm (E5AC-T) PV display (white),
Improve visibility.
Not only on the top of the body, but also on the front,
The use of communication adapter cable (sold separately) connected to the computer after,
No power connection can be set.
It can be easily set by CX-Thermo (sold separately).
High speed sampling to achieve 50ms.
With auxiliary output (4 points), event input (maximum 6 points), the transmission output,
Support a variety of applications.
Slender fuselage depth 60mm.
Easy to connect with PLC through no program communication.
Combined temperature control device through component communication.
Add position proportional control type, also support control valve control.

Size: 96 x 96mm.
Control output 1: relay output.
Control output 2:--.
Auxiliary output: 2 independent points.
Power supply voltage: AC100 ~ 240V.
Terminal shape: screw terminal table type.
Input category: full range multi input.
Heating wire break, SSR fault detection function: -.
Communication: - OMRON E5EC-TRX4DSM-080.
Event input: -.
Remote SP input: -.
Transfer output: -.
Large screen display white PV legible E5EC-TRX4DSM-080 From selection to setting and operation are simple and easy to use.
Full capacity, function and performance of I/O. Suitable for more applications.
E5AC white LCDPV display height is about 25mm.
The upper panel and the front panel are equipped with tool ports.
With the communication conversion line (sold separately) connected to the computer to establish the controller without the need to install the wire for power supply OMRON E5EC-TRX4DSM-080.
Easy to install CX-Thermo (sold separately).
50ms high speed sampling period.
Model can be equipped with up to 4 point auxiliary output, 6 point event input,
1 point transfer output and remote SP input, suitable for a wide range of applications.
The main body is short, the thickness is only 60mm OMRON E5EC-TRX4DSM-080.
Easy to use programmable logic controller (PLC) is connected to the programmable logic controller (PLC).
The temperature controller is connected to each other by using the component communication.
A new type of proportional control allows you to control the valve. Ontology: terminal type, analog input type.
Type: control output 1 point type (power AC/DC24V).
Shell color: black.
Control output: relay output.
Control mode: standard or heating cooling.
Auxiliary output points: 2 points.
The heater is used to break, SSR fault, heater over current detection function /ES1B power supply: single phase or three phase heater with detection function.
Event input points: -.
Transfer output: -.
Communication: RS-485.
48mm general thermostat has been upgraded & function / performance upgrade.
Indicates that the accuracy is increased and the preventive maintenance function is increaseed,
Further performance improvement E5EC-TRX4DSM-080.
E5CN-U (insert type) add analog input and current output type.
Add PV/SV status display function, convenient to check the state of the thermostat (automatic / manual, RUN/STOP, alarm),
Interactivve display PV/SV E5EC-TRX4DSM-080.
Increase the number of control output ON/OFF counting function, can prevent the maintenance of temperature controller internal relay.
