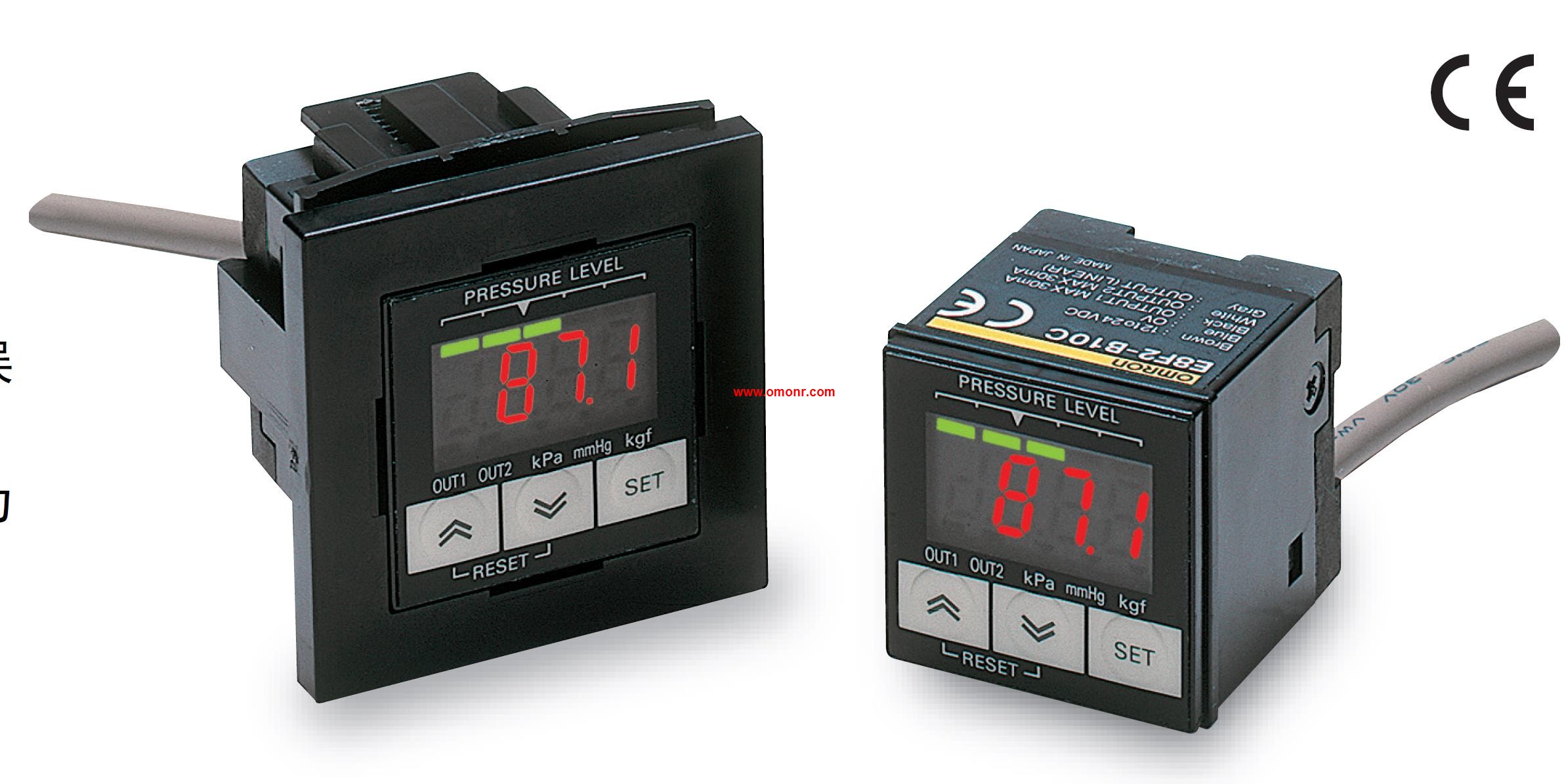

E8F2-B10B | OMRON Digital Pressure Sensor E8F2-B10B
OMRON E8F2-B10B Manual And Instructions
E8F2-B10B datasheetPDF datasheet
E8F2-B10B INSTRUCTION sheet
OMRON E8F2-B10B Product information and technical parameters：
Brand: OMRON
Name: Digital Pressure Sensor
Model: E8F2-B10B
Pressure range: Positive pressure; 0 to 1 MPa.
ON/OFF output: Open collector (two independent outputs).
Linear output: 1 to 5 V.
Model: PNP output.
Pressure Sensor with.
Easy-to-Read LED Display.
Pressure status can be checked at a glance from the,
digital display and bar display.
Measurement pressure prevents incorrect outputs due,
to momentary pressure changes.
Perform automatic teaching simply by teaching pressure,
values for good and bad products.
Industry’s smallest models at just 28 × 28 × 29 mm.
Only in hysteresis mode.
...More relevant models >>>>
