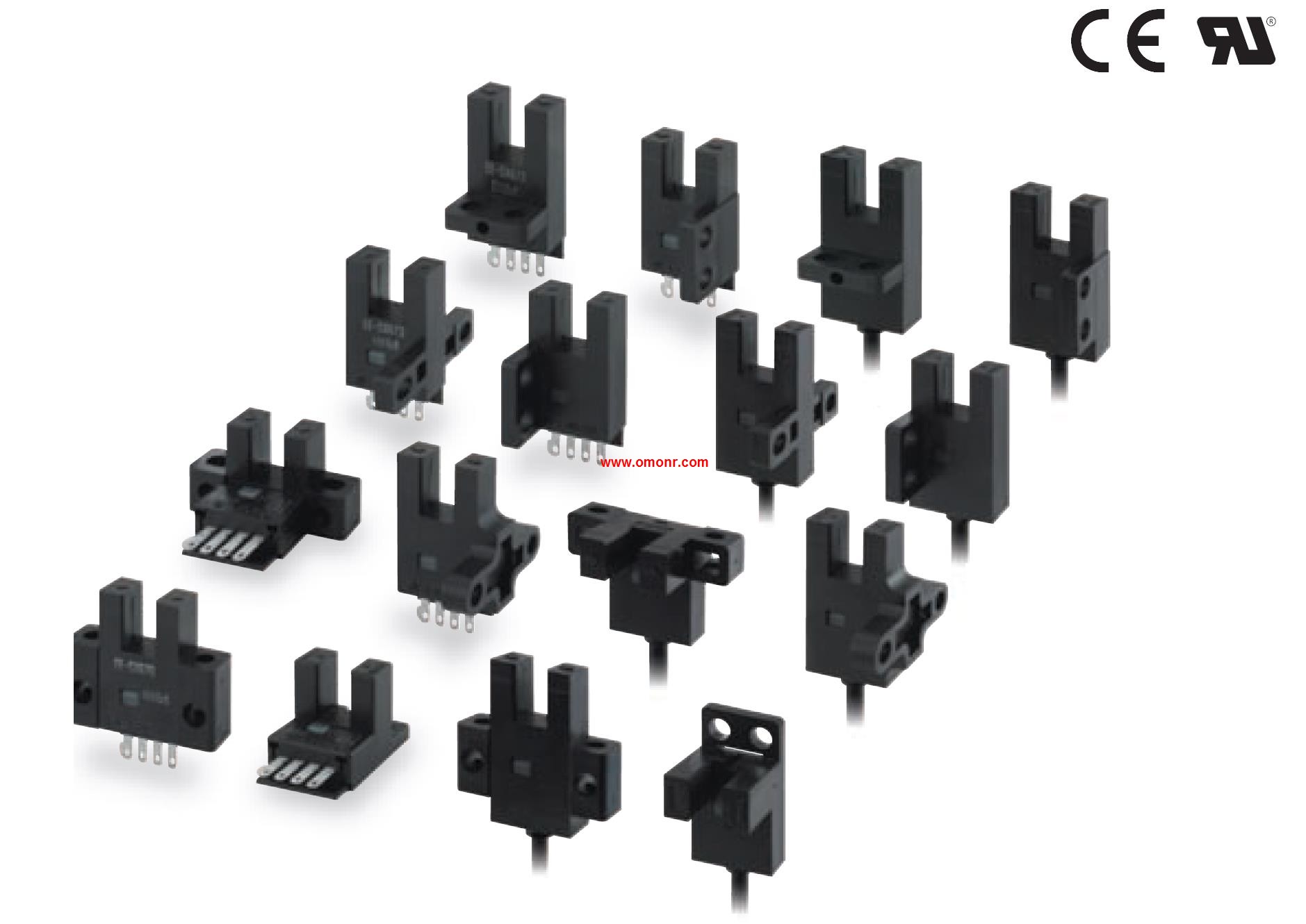

EE-SX671A | OMRON Slot-type Photomicrosensor EE-SX671A
OMRON EE-SX671A Manual And Instructions
EE-SX671A datasheetPDF datasheet
EE-SX671A INSTRUCTION sheet
OMRON EE-SX671A Product information and technical parameters：
Brand: OMRON
Name: Slot-type Photomicrosensor
Model: EE-SX671A
Appearance: L-shaped.
Sensing method: Throughbeam type(with slot).
Connecting method: Connector(4 poles).
Sensing distance: 5 mm (slot width).
Output configuration: Dark-ON/Light-ON (selectable).
Indicator mode: No incident light.
Model: NPN output.
Global Standard Slot-type.
photomicrosensors with 50- to,
100-mA direct switching capacity.
Series includes models that enable switching between,
dark-ON and light-ON operation.
Response frequency as high as 1 kHz.
Easy operation monitoring with bright light indicator.
Wide operating voltage range: 5 to 24 VDC.
Models in which the light indicator turns ON for dark-ON,
operation are also available.
A wide range of variations in eight different shapes.
Flexible robot cable is provided as a standard feature.
...More relevant models >>>>
