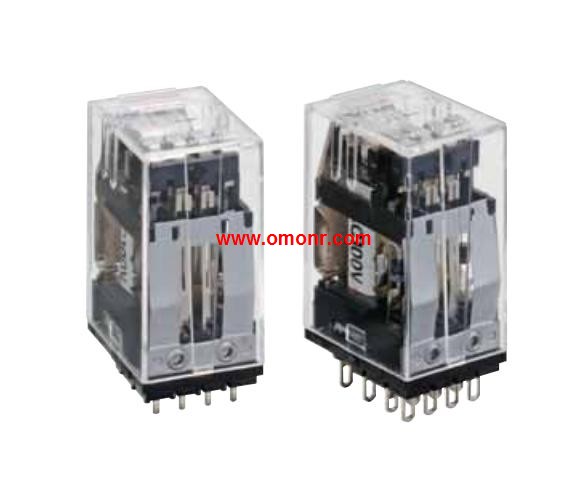

G2AK Series | OMRON Latching Relay G2AK Series
OMRON G2AK Series Manual And Instructions
G2AK Series datasheetPDF datasheet
OMRON G2AK Series Product information and technical parameters：
Brand: OMRON
Name: Latching Relay
Model: G2AK Series
Magnetic Latching Version of G2A Ideal for.
Sequence Control.
Double-winding latch system with continuous rating.
Terminals pulled from the respective junctions between the,
built-in diodes and set and reset coils allow the built-in diodes to,
be externally connected for coil surge absorption.
Excellent vibration/shock resistance with minimal secular,
decrease in latching power.
Easy monitoring of ON/OFF operation due to the built-in,
operation indicator mechanism.
Same outline dimensions as the standard models of G2A.
