Refer to Safety Precautions for All Solid State Relays.
Detects failures in SSR used for heater,
temperature control and simultaneously,
outputs alarm signal. This SSR supports the,
safe design of heater control systems, and,
contributes to maintenance improvements by the user.
Main detection items:
SSR short-circuits and SSR open-circuits,
Alarm output possible to NPN/PNP-input devices OMRON G32A-D40 G32A-D40
The failure-detection function is built-in and power is supplied,
from the main circuit power supply making wiring simple.
Slim design (width: 22.5 mm) incorporating a heat sink.
In addition to screw mounting, DIN track mounting is also possible.

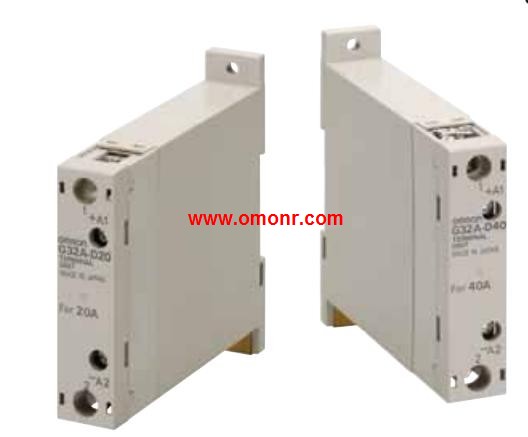

Certified by EC, UL, and CSA. Item: Basic model OMRON G32A-D40.
DPDT: Rated voltage, 24 VAC, 50 VAC, 100/(110) VAC,
200/(220) VAC, 12 VDC, 24 VDC, 100 VDC.
Unique Ratchet Mechanism Assures Positive.
Alternate Transfer/Switching Operation.
Each contact in the double-pole contact mechanism performs.
alternate make-brake operation at each pulse input and is thus.
ideal for alternate operation or transfer/switching operation of a motor.
Positive operation is assured due to the unique ratchet mecha nism OMRON G32A-D40.
Satisfies dielectric strength of 2,000 VAC.
Low power consumption.
(AC: approx. 6.4 VA; DC: approx. 3.9 W). Insulation method: Photocoupler.
Operation indicator: Yes.
Response speed: Low-speed.
Applicable load: 4 to 32 VDC 0.1 to 100 mA.
Input rated voltage: 5 VDC.
SSR with Plug-in Terminals.
The Same Shape as the G2R-1-S.
Power Relays.
These I/O solid state relays can be mounted in OMRON.
G70A I/O Terminals.
Lineup includes Input Modules for microloads and Output,
Modules for standard loads.
Lineup also includes UL, CSA, and TÜV-certified models,
(-UTU models). Isolation method: Relay.
Zero cross function: No.
Operation indicator: Yes.
Applicable output load(See note.): 10 A 100 to 240 VAC.
Rated input voltage: 5 VDC.
Hybridization of a Magnetic Relay and an,
SSR Achieves 10-A Switching for 10 Million,
Operations.
UL/CSA certified (-VD models).
Using a triac to open and close the circuit reduces chattering,
and arching, thereby increasing the electrical durability to 10,
million operations.
Relays contacts for power ON andd 10-A switching with high,
capacity are provided in a compact body without the need of,
radiators G32A-D40. Plus, there is almost no effect on heat generation,
or ambient temperature.
Operation indicators to easily check operation.
Built-in teemperature fuse prevents internal burning due to,
triac or relay malfunctions G32A-D40.
Socket-type Relays the same size as the 1-pole and 2-pole,
LY Relays.
