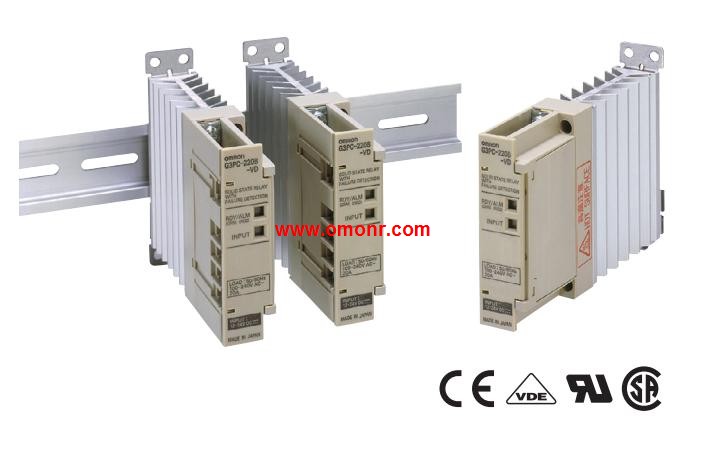

G3PC Series | OMRON Solid State Relays with Failure Detection Function G3PC Series
OMRON G3PC Series Manual And Instructions
G3PC Series datasheetPDF datasheet
OMRON G3PC Series Product information and technical parameters：
Brand: OMRON
Name: Solid State Relays with Failure Detection Function
Model: G3PC Series
Refer to Safety Precautions for All Solid State Relays.
Detects failures in SSR used for heater,
temperature control and simultaneously,
outputs alarm signal. This SSR supports the,
safe design of heater control systems, and,
contributes to maintenance improvements by the user.
Main detection items:
SSR short-circuits and SSR open-circuits,
Alarm output possible to NPN/PNP-input devices.
The failure-detection function is built-in and power is supplied,
from the main circuit power supply making wiring simple.
Slim design (width: 22.5 mm) incorporating a heat sink.
In addition to screw mounting, DIN track mounting is also possible.
Certified by EC, UL, and CSA.
