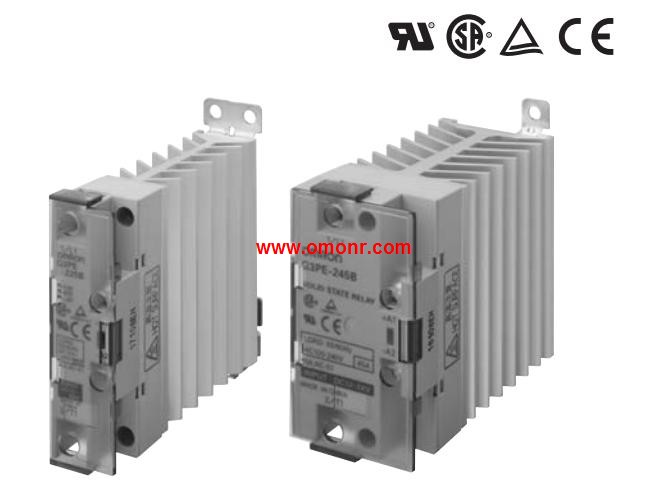

G3PE-235BL DC12-24 | OMRON Solid State Relays for Heaters G3PE-235BL DC12-24
OMRON G3PE-235BL DC12-24 Manual And Instructions
G3PE-235BL DC12-24 datasheetPDF datasheet
OMRON G3PE-235BL DC12-24 Product information and technical parameters：
Brand: OMRON
Name: Solid State Relays for Heaters
Model: G3PE-235BL DC12-24
Number of phases: Single-phase.
Insulation method: Phototriac coupler.
Operation indicator: Yes (yellow).
Rated input voltage: 12 to 24 VDC.
Zero cross function: No.
Applicable load: 35 A, 100 to 240 VAC.
Compact, Slim-profile SSRs with Heat,
Sinks. Models with No Zero Cross for,
a Wide Range of Applications.
RoHS compliant.
Models also available with no zero cross,
Surge pass protection improved surge dielectric strength for,
output currents. (OMRON testing).
Compact with a slim profile.
Mount to DIN Track or with screws.
Conforms to UL, CSA, and EN standards (TÜV certification).
