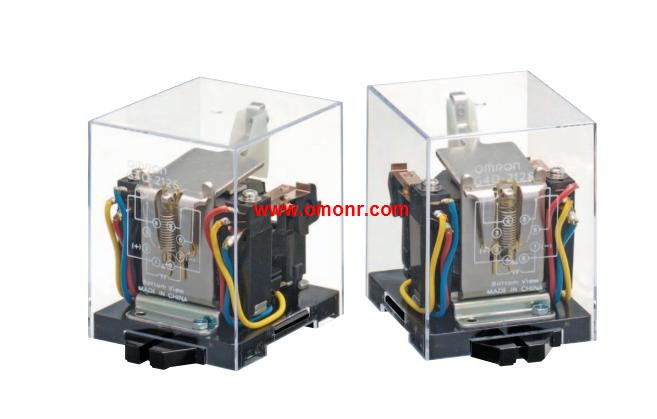

G4Q-211A | OMRON Ratchet Relay G4Q-211A
OMRON G4Q-211A Manual And Instructions
G4Q-211A datasheetPDF datasheet
OMRON G4Q-211A Product information and technical parameters：
Brand: OMRON
Name: Ratchet Relay
Model: G4Q-211A
Item: Basic model.
DPDT: Rated voltage, 24 VAC, 50 VAC, 100/(110) VAC,
200/(220) VAC, 12 VDC, 24 VDC, 100 VDC.
Unique Ratchet Mechanism Assures Positive.
Alternate Transfer/Switching Operation.
Each contact in the double-pole contact mechanism performs.
alternate make-brake operation at each pulse input and is thus.
ideal for alternate operation or transfer/switching operation of a motor.
Positive operation is assured due to the unique ratchet mecha nism.
Satisfies dielectric strength of 2,000 VAC.
Low power consumption.
(AC: approx. 6.4 VA; DC: approx. 3.9 W).
