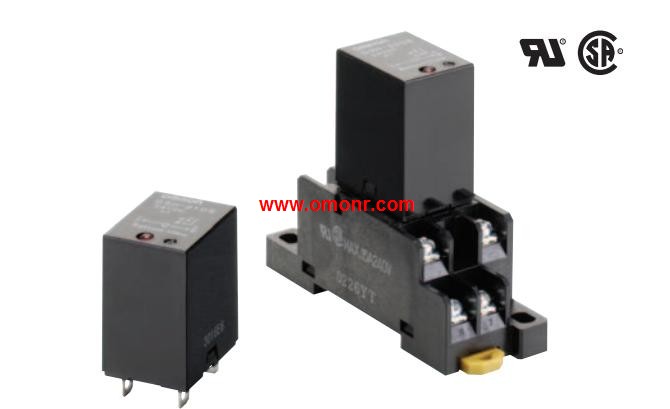

G9H-210S DC5 | OMRON Hybrid Power Relay G9H-210S DC5
OMRON G9H-210S DC5 Manual And Instructions
G9H-210S DC5 datasheetPDF datasheet
OMRON G9H-210S DC5 Product information and technical parameters：
Brand: OMRON
Name: Hybrid Power Relay
Model: G9H-210S DC5
Isolation method: Relay.
Zero cross function: No.
Operation indicator: Yes.
Applicable output load(See note.): 10 A 100 to 240 VAC.
Rated input voltage: 5 VDC.
Hybridization of a Magnetic Relay and an,
SSR Achieves 10-A Switching for 10 Million,
Operations.
UL/CSA certified (-VD models).
Using a triac to open and close the circuit reduces chattering,
and arching, thereby increasing the electrical durability to 10,
million operations.
Relays contacts for power ON and 10-A switching with high,
capacity are provided in a compact body without the need of,
radiators. Plus, there is almost no effect on heat generation,
or ambient temperature.
Operation indicators to easily check operation.
Built-in temperature fuse prevents internal burning due to,
triac or relay malfunctions.
Socket-type Relays the same size as the 1-pole and 2-pole,
LY Relays.
