LK Automation Limited
Brand:
OMRON

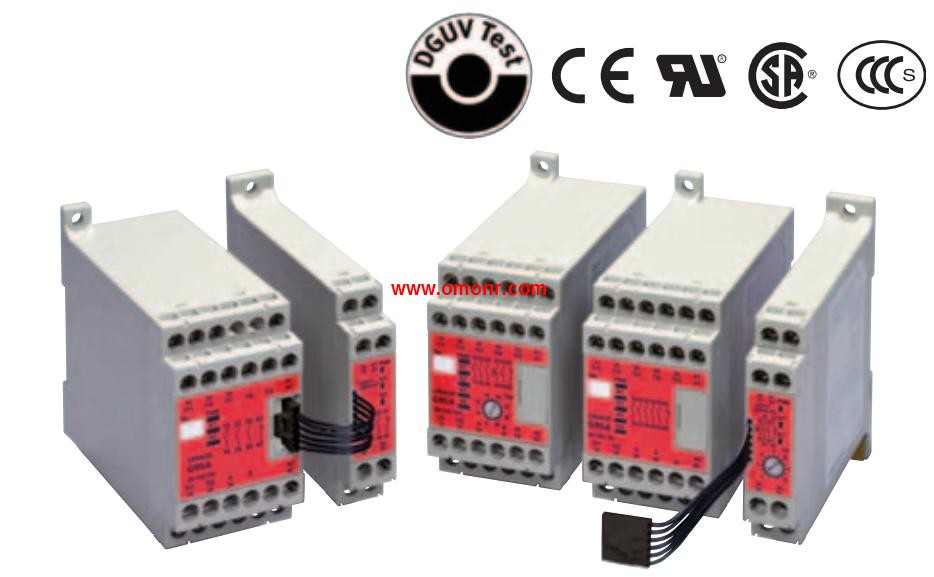

G9SA-501 | OMRON Safety Relay Unit G9SA-501
OMRON G9SA-501 Manual And Instructions
G9SA-501 datasheetPDF datasheet
G9SA-501 user's manual
OMRON G9SA-501 Product information and technical parameters：
Brand: OMRON
Name: Safety Relay Unit
Model: G9SA-501
Main contacts: 5PST-NO.
Auxiliary contact: SPST-NC.
Number of input channels: 1 channel or 2 channels possible.
Rated voltage: 24 VAC/VDC; 100 to 240 VAC.
The G9SA Series Offers a Complete.
Line-up of Compact Units.
Four kinds of 45-mm wide Units are available:
A 3-pole model, a 5-pole model, and models with 3 poles,
and 2 OFF-delay poles, as well as a Two-hand Controller.
Also available are 17.5-mm wide Expansion Units with 3,
poles and 3 OFF-delay poles.
Simple expansion connection.
OFF-delay models have 15-step OFF-delay settings.
Conforms to EN ISO13849-1 (PLe/Safety Category 4).
Both DIN track mounting and screw mounting are possible.
...More relevant models >>>>
