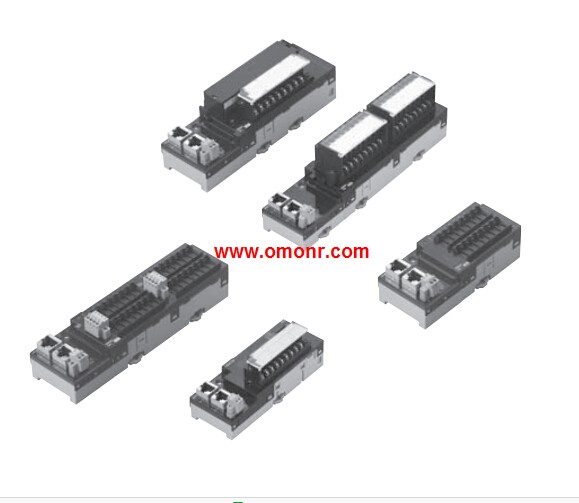

GX-MD1621 | OMRON EtherCAT Remote I/O Terminals GX-MD1621
OMRON GX-MD1621 Manual And Instructions
GX-MD1621 datasheetPDF datasheet
GX-MD1621 PROGRAMMING MANUAL
GX-MD1621 INSTRUCTION MANUAL
GX-MD1621 Safety Precautions
OMRON GX-MD1621 Product information and technical parameters：
Brand: OMRON
Name: EtherCAT Remote I/O Terminals
Model: GX-MD1621
Internal I/O common: PNP.
I/O indicators: LED display (yellow).
Unit power supply current consumption:
80 mA max. (for 20.4 to 26.4-VDC power supply voltage)
Weight: 190 g max.
Expansion functions: No.
Short-circuit protection function: No.
High-speed digital I/O terminal with the,
screw type terminal block for EtherCAT,
communications.
Detachable screw terminal block facilitates,
the maintenance.
The expansion unit can be connected.
(One expansion unit per one I/O terminal unit.)
Input/output point can be flexibly increased,
depending on the system.
Input response time can be switched for,
high-speed processing.
Selectable node address setting methods:
setting with rotary switch and with tool software.
When setting the nodes with rotary switch,
setting is easy and node identification becomes,
possible for maintenance.
