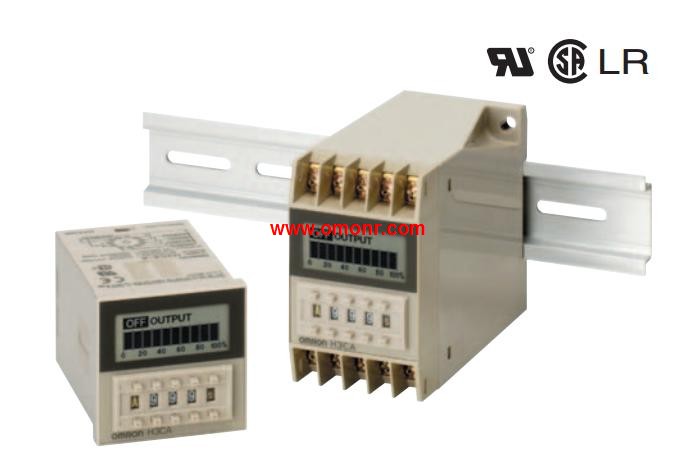

H3CA-FA-306 | OMRON Solid state timer H3CA-FA-306
OMRON H3CA-FA-306 Manual And Instructions
H3CA-FA-306 datasheetPDF datasheet
H3CA-FA-306 INSTRUCTION MANUAL
OMRON H3CA-FA-306 Product information and technical parameters：
Brand: OMRON
Name: Solid state timer
Model: H3CA-FA-306
Installation method: surface mount.
Action function: 8 multi-function action (A, B, C, D, E, F, G, H,).
Action mode / reset mode: time limit action / auto reset / external reset.
Set lock mechanism.
External connection: terminal with screw.
Time limit contact: 1c.
Instantaneous contact: No.
1 timer to achieve AC/DC free power,
8 action functions 0.1 seconds to 9990 hours.
Through time display windows wide, eye-catching.
Free power mode using AC24 ~ 240V/DC12 ~ 240V.
And the DC specification does not have to specify the polarity.
8 action functions can be selected by the action function switch.
Combined operation of time setting switch and time unit switch,
Realization
