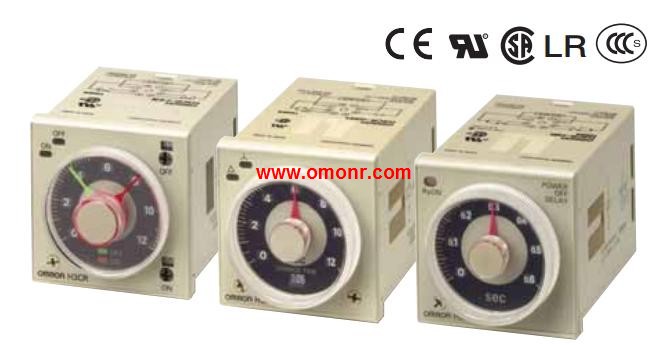

H3CR-F8N | OMRON Solid-state Twin Timers H3CR-F8N
OMRON H3CR-F8N Manual And Instructions
H3CR-F8N datasheetPDF datasheet
H3CR-F8N INSTRUCTION MANUAL
OMRON H3CR-F8N Product information and technical parameters：
Brand: OMRON
Name: Solid-state Twin Timers
Model: H3CR-F8N
Operating modes: Flicker ON start.
Supply voltage: 100 to 240 VAC/100 to 125 VDC, 24 to 48 VAC/12 to 48 VDC.
0.05 s to 300 h models: 8-pin models.
DIN 48 × 48-mm Twin Timers.
Wide power supply ranges of High Voltage 100 to 240 VAC/100,
to 125 VDC and Low Voltage 24 to 48 VAC/12 to 48 VDC.
ON- and OFF-times can be set independently and so,
combinations of long ON- or OFF-time and short OFF- or ON,
time settings are possible.
Twenty-four time ranges from 0.05 s to 300 h depending on the,
model to be used.
Models with a flicker ON start or flicker OFF start are available.
Easy sequence checks through instantaneous outputs for a,
zero set value at any time range.
Length, when panel-mounted with a Socket, of 80 mm or less.
11-pin and 8-pin models are available.
