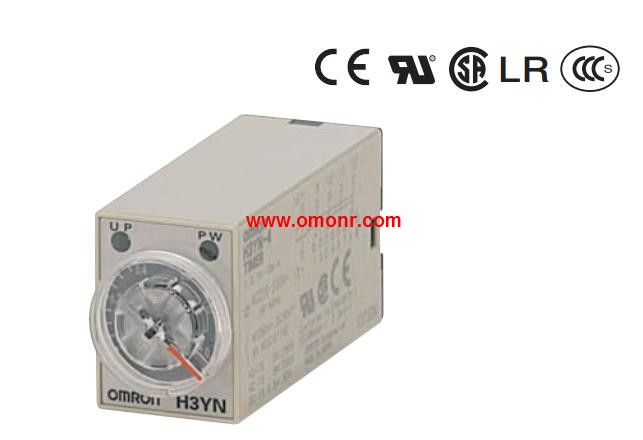

H3YN-4-Z | OMRON Solid-state Timer H3YN-4-Z
OMRON H3YN-4-Z Manual And Instructions
H3YN-4-Z datasheetPDF datasheet
OMRON H3YN-4-Z Product information and technical parameters：
Brand: OMRON
Name: Solid-state Timer
Model: H3YN-4-Z
Supply voltage: 24 VDC.
Time-limit contact: 4PDT(Twin contacts).
Short-time range model (0.1 s to 10 min).
Miniature Timer with Multiple Time.
Ranges and Multiple Operating Modes.
Minimizes stock.
Pin configuration compatible with MY Power Relay.
Standard multiple operating modes and multiple time ranges.
Conforms to EN 61812-1 and IEC 60664-1 for Low Voltage,
and EMC Directives.
