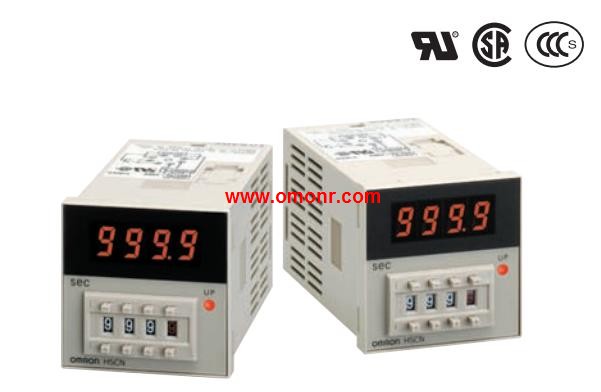

H5CN-XAN | OMRON Digital Timer H5CN-XAN
OMRON H5CN-XAN Manual And Instructions
H5CN-XAN datasheetPDF datasheet
H5CN-XAN INSTRUCTION MANUAL
OMRON H5CN-XAN Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5CN-XAN
Display type: UP display timer (increments form 0 to the set time).
Output type: Contact output (SPDT).
Pin type: 8-pin.
Memory backup: Not provided.
Supply voltage: 100 to 240 VAC, 12 to 48 VDC.
Rated time: 0.001 to 99.99 s.
Miniature DIN-sized (48 x 48 mm) Quartz.
Timer with Abundant Series Versions.
Series version cover a wide range of rated times; 9.999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min.
Selection of elapsed time indication, remaining time indication,
contact output, and transistor output types to suit requirements.
Power supply freely selectable within a range of 100 to,
240 VAC, as well as 12 to 48 VDC.
Certified for UL and CSA safety standards.
