Type: H5CX-A series.
Time specifications: 0.001 to 9.999 s, 0.01 to 99.99 s,
0.1 to 999.9 s, 1 to 9999 s, 1 s to 99 min 59 s, 0.1 to 999.9 min,
1 to 9999 min, 1 min to 99 h 59 min, 0.1 to 999.9 h, 1 to 9999 h.
Operating modes: Timer Mode, A: Signal ON Delay I, A-1: Signal ON Delay II,
A-2: Power ON Delay I, A-3: Power ON Delay II, b: Repeat cycle 1,
b-1: Repeat cycle 2, d: Signal OFF Delay, E: Interval, F: Cumulative,
Z: ON/OFF-duty-adjustable flicker, S: Stopwatch, Twin Timer Mode,
toff: Flicker OFF Start 1, ton: Flicker ON Start 1,
toff-1: Flicker OFF Start 2, ton-1: Flicker ON Start 2 OMRON H5CX-AS-N H5CX-AS-N
External connections: Screw terminals.
Input: Signal, Reset, Gate (NPN/PNP input).
Output: Contact output (time-limit SPDT) OMRON H5CX-AS-N.
Supply voltage: 100 to 240 VAC.
The Timer with the Shortest Body,
in the Industry. Count input: No-voltage input.
Display: 7-segment LCD.
Total counter: Max. counting speed; 30 Hz.
Dedicated for use on PCB.
Total Counters and Time Counter available. Type: H7CX-A Series.
Classification: Preset counter/Tachometer.
Configuration: 1-stage preset counter, 2-stage preset counter,
Total and preset counter, Batch counter, Dual counter, Twin counter, Tachometer OMRON H5CX-AS-N.
External connections: Screw terminals.
Settings: 2-stage.
Display digit: 6 digits.
Outputs: Transistor output (DPST).
Power supply voltage: 100 to 240 VAC.
Ultra-compact Counter Provides More,
Complete Functionality.
Basic Features.
Short body with depth of only 59 mm (for 12 to 24-VDC Models with,
Screw Terminals).
Better readability with character height of 12 mm on 4-digit models,
and 10 mm on 6-digit models.
The present value display characters can be switched between red,
green, and orange.
Safety and Reliability.
New set value limit and counter functions have been added.
Other Features.
Front Panel can be changed to white or light gray.
New models with two tachometer inputs and two tachometer outputs have,
been added to the series. Operation/resetting system: Time-limit operation/self,
resetting/external, resetting (see note 2).
Operation mode: 8 operation modes (selectable)(see note 3).
Terminal: 11-pin round socket.
Time-limit contact: SPDT.
Instantaneous contact: --.
Mounting: Surface mounting/track mounting; Flush mounting.

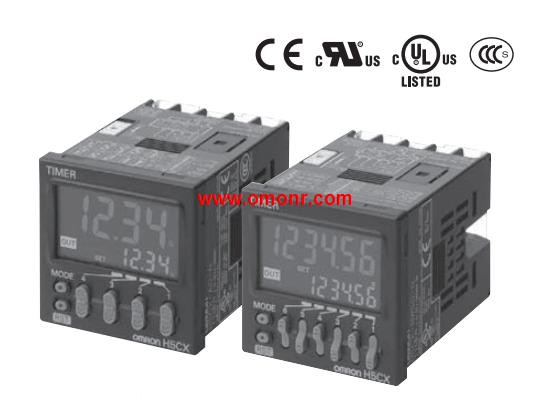

DIN-sizzed (48 x 48, 45 x 75 mm) Timer with H5CX-AS-N.
Digital Setting and LCD Display.
Dual power supplies for free AC/DC.
Eight operation modes selectable with one unit.
Any desired time can be set digitally within a range from 0.1,
seconds to 9,9900 hrs H5CX-AS-N.
Four external signal inputs.
ON/OFF indicator for control output and bar indicator for,
remaining time.
Conforms to UL, CSA, and CE marking.
