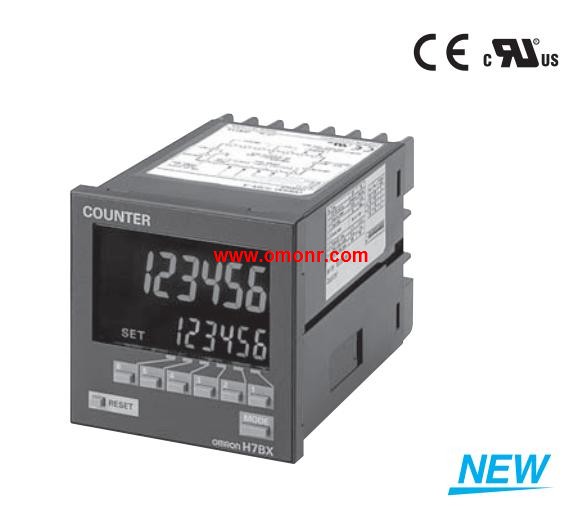

H7BX-AW | OMRON Multifunction Counter H7BX-AW
OMRON H7BX-AW Manual And Instructions
H7BX-AW datasheetPDF datasheet
H7BX-AW User's Manual
OMRON H7BX-AW Product information and technical parameters：
Brand: OMRON
Name: Multifunction Counter
Model: H7BX-AW
External power supply: 12 VDC.
Output type: Contact and NPN transistor output.
Supply voltage: 100 to 240 VAC.
2-stage.
DIN 72 × 72 mm Multifunction Counter with a,
Bright, Easy-to-view, Negative Transmissive LCD.
Highly visible display with backlit transmissive LCD.
Selectable display color (red/green) enables checking output status at a distance.
Easy operation with a key for each digit.
Perform all basic settings with a DIP switch.
Provides a total and preset counter, batch counter, dual counter,
and tachometer (See note.).
Wide range of inputs accepted for NPN/PNP inputs (multi-inputs) and,
2-wire DC sensors.
Complies with UL, CSA, and CE marking.
Degree of protection: IP54 equivalent (front section only).
