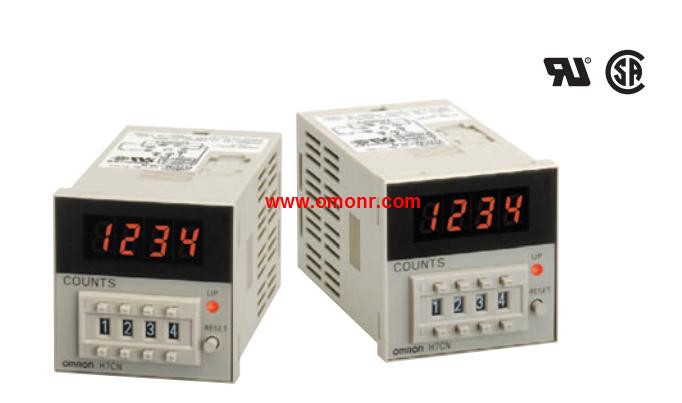

H7CN-ALN | OMRON Solid-state Counter H7CN-ALN
OMRON H7CN-ALN Manual And Instructions
H7CN-ALN datasheetPDF datasheet
H7CN-ALN User's Manual
OMRON H7CN-ALN Product information and technical parameters：
Brand: OMRON
Name: Solid-state Counter
Model: H7CN-ALN
Classification: Preset Counter.
Input signal system (Count & reset inputs): Contact, Transistor.
Mounting method: Flush mounting, surface mounting.
Display: 7-segment LEDs (10 mm high), Up indicator.
Number of digits: 4 digits (0 to 9,999).
Backup power for memory protection: No.
Control output: Contact (SPST-NO).
Operating mode: Reversible counting, command inpu.
Max.counting speed: 30 cps.
All Required Counter Functions.
Incorporated in a Compact DIN-sized.
(48 × 48) Housing.
In addition to Up and Down models, a reversible (Up-Down),
counter is also available.
Maximum counting speed of 5,000 cps, never before attained by,
a small-size preset counter.
Power supply freely selectable within a range of 100 to 240 VAC.
Also, power supply for the DC-operated models is selectable,
within a range of 12 to 48 V.
Models with memory backup function against power failure available.
