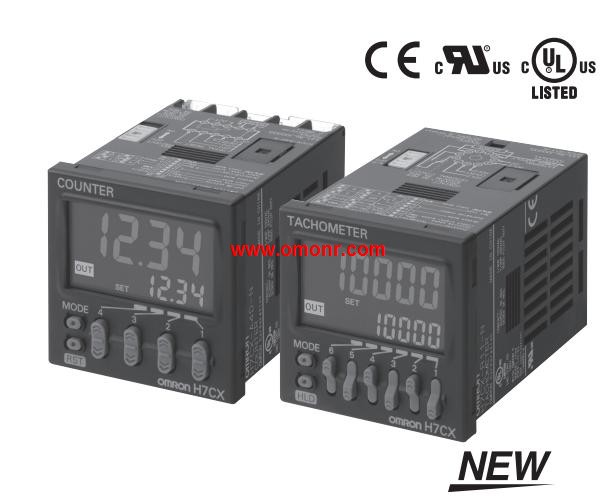

H7CX-A4S-N | OMRON Multifunction Counter/Tachometer H7CX-A4S-N
OMRON H7CX-A4S-N Manual And Instructions
H7CX-A4S-N datasheetPDF datasheet
H7CX-A4S-N datasheetPDF datasheet
H7CX-A4S-N Communications Manual
OMRON H7CX-A4S-N Product information and technical parameters：
Brand: OMRON
Name: Multifunction Counter/Tachometer
Model: H7CX-A4S-N
Type: H7CX-A Series.
Classification: Preset counter.
Configuration: 1-stage preset counter; Total and preset counter.
External connections: Screw terminals.
Settings: 1-stage.
Display digit: 4 digits.
Outputs: Transistor output (SPST).
Power supply voltage: 100 to 240 VAC.
