H8PS-32BF | OMRON Cam Positioner H8PS-32BF
OMRON H8PS-32BF Manual And Instructions
H8PS-32BF datasheetPDF datasheet
H8PS-32BF REFERENCE MANUAL
H8PS-32BF Communications Manual
OMRON H8PS-32BF Product information and technical parameters：
Brand: OMRON
Name: Cam Positioner
Model: H8PS-32BF
Number of outputs: 32 outputs.
Mounting method: Surface mounting/track mounting.
Output configuration: NPN transistor output.
Bank function: Yes.

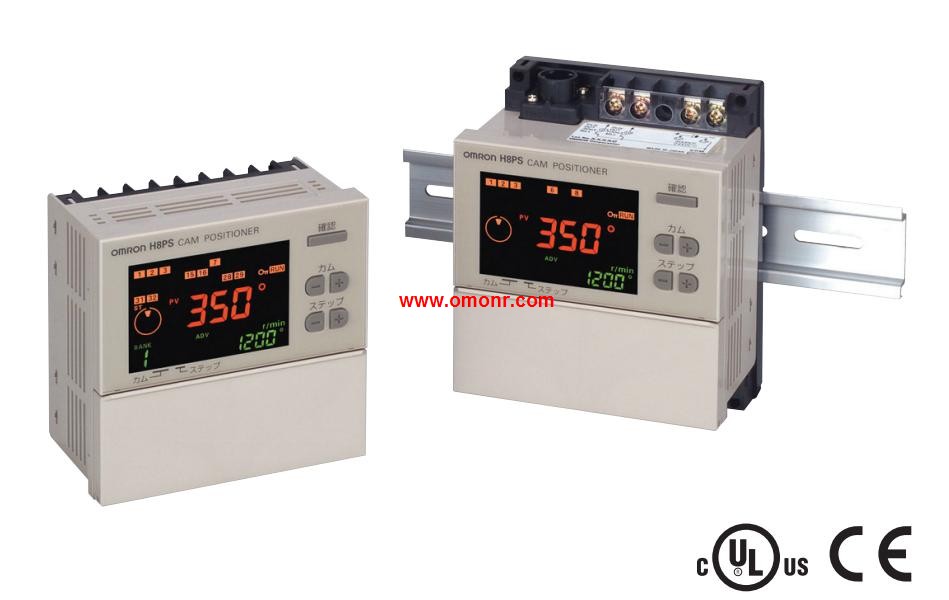

This Compact Cam Positioner, Popular for Its.
Ease-of-use, Now Comes with Even Better Functions.
Compact 8-, 16-, and 32-output Models available that,
are 1/4-DIN size at 96 x 96 mm.
High-speed operation at 1,600 r/min and high-precision settings,
to 0.5° ensure widespread application.
Highly visible display with backlit negative transmissive LCD.
Advance angle compensation function to compensate for output delays.
Bank function for multi-product production (8 banks).
(H8PS-16@/-32@ models.).
Speed display and pulse output.
Approved standards: UL/CSA and EMC.
