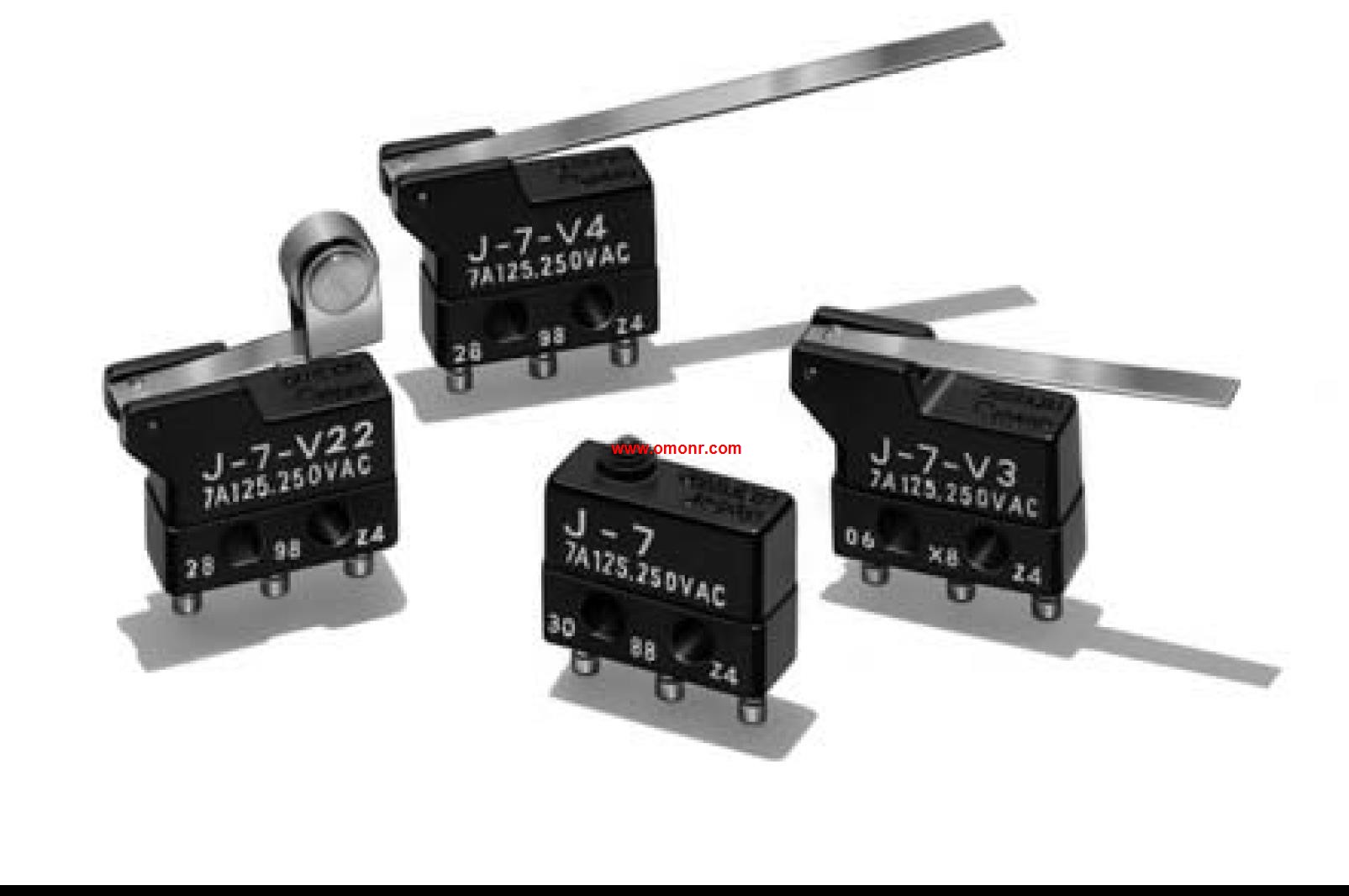

J-7-V4 | OMRON Ultra Subminiature Basic Switch J-7-V4
OMRON J-7-V4 Manual And Instructions
J-7-V4 datasheetPDF datasheet
OMRON J-7-V4 Product information and technical parameters：
Brand: OMRON
Name: Ultra Subminiature Basic Switch
Model: J-7-V4
Actuator: Long Hinge Lever.
Subminiature Models.
Capable of Large-capacity.
load of 7A.
Snap-action switch allows large-capacity.
switching (7A at 250 VAC) in spite of its small size.
Particularly suitable as control switches for,
applications where there are restrictions on,
installation space and weight.
