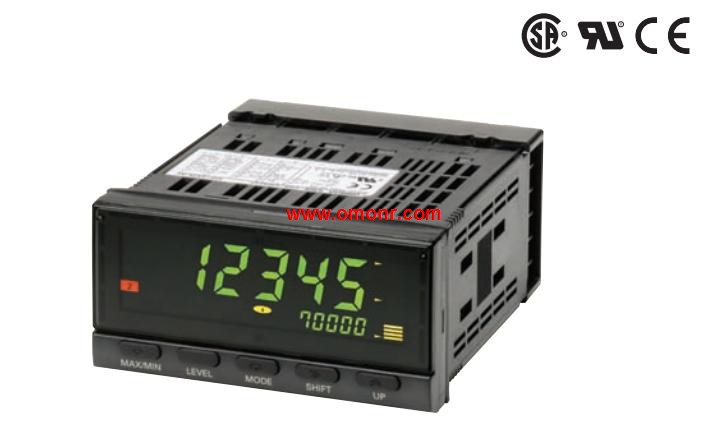

K3HB-CNB-AT11 AC/DC24V | OMRON Cumulative / increase / decrease pulse meter K3HB-CNB-AT11 AC/DC24V
OMRON K3HB-CNB-AT11 AC/DC24V Manual And Instructions
K3HB-CNB-AT11 AC/DC24V datasheetPDF datasheet
OMRON K3HB-CNB-AT11 AC/DC24V Product information and technical parameters：
Brand: OMRON
Name: Cumulative / increase / decrease pulse meter
Model: K3HB-CNB-AT11 AC/DC24V
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
Transistor: -; NPN open collector (OUT5, OUT4, OUT3, OUT2, OUT1).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
High speed pulse.
Measuring, increasing or decreasing pulse meter.
Action determine the color, can switch the green / Red 2 kinds of color display.
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
The cumulative pulse input is 50kHz, the phase difference pulse is 25kHz, and the increase or decrease of pulse is
