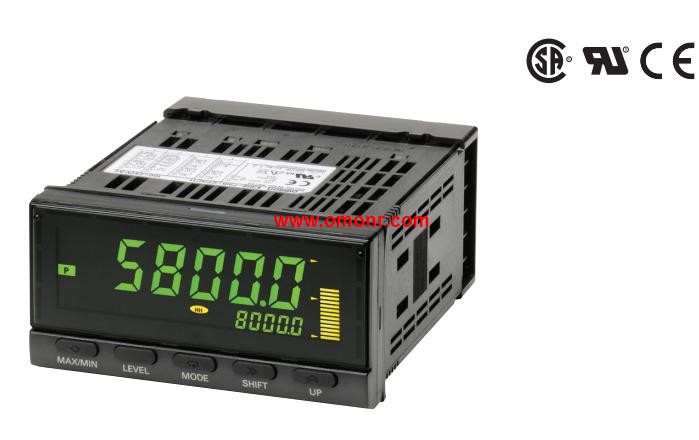

K3HB-PPB-FLK3AT11 AC/DC24V | OMRON Time interval table K3HB-PPB-FLK3AT11 AC/DC24V
OMRON K3HB-PPB-FLK3AT11 AC/DC24V Manual And Instructions
K3HB-PPB-FLK3AT11 AC/DC24V datasheetPDF datasheet

OMRON K3HB-PPB-FLK3AT11 AC/DC24V Product information and technical parameters:
Brand: OMRON
Name: Time interval table
Model: K3HB-PPB-FLK3AT11 AC/DC24V
Input type: PNP input type.
Event input terminal 5 points (HOLD, RESET) equipped with.
External power supply DC12V80mA.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
Communication: RS-485; NPN open collector (HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
Measurement of 2 points through the speed, time, or cycle of the digital time interval table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of wide range of pulse interval time.
Measuring, calculating and displaying the pulse interval between 2 points.
Pulse interval measurement range, the maximum can be measured from 1

Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET, COMPENSATION) is equipped with.
External power supply DC12V80mA.
DeviceNet; DeviceNet:--.
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
High speed pulse.
Measuring, increasing or decreasing pulse meter OMRON K3HB-PPB-FLK3AT11 AC/DC24V.
Action determine the color, can switch the green / Red 2 kinds of color display K3HB-PPB-FLK3AT11 AC/DC24V
The best choice of rotating encoder and all kinds of ON/OFF pulse signal at high speed,
Cumulative pulse input is 50kHz, phase difference pulse is 25kHz, increase or decrease of pulse is 30kHz.
Support for non voltage contact inputInput type: Rotary pulse.
Supply voltage: 24 VAC/VDC.
Output: None OMRON K3HB-PPB-FLK3AT11 AC/DC24V.
Highly Visible LCD Display with 2-color (Red and Green) LEDs.
Contact, NPN, PNP, or voltage pulse input.
Front-panel key operation for easy setting.
Average processing function suppresses flicker.
Includes scaling, auto-zero time, startup compensation time functions.
Easy confirmation of max/min display.
Short 80-mm depth (measured from edge of face plate).
Finger protective cover (standard equipment) guards against electric shock OMRON K3HB-PPB-FLK3AT11 AC/DC24V.
Water- and dust-proof NEMA4X (IP66 equivalent) front panel.
Recognized to U.S. and Canadian requirements under the Compo,
nent Recognition Program of UL.
CE marking.
Built-in external power supply (12 VDC, 40 mA). Type of input: platinum resistance / thermocouple input.
Event input terminal 4 points (TIMING, S-TIM, HOLD, RESET) is equipped with.
Transistor: -; NPN open collector (HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC100 ~ 240V.
Temperature indicattor and measurement of various processes K3HB-PPB-FLK3AT11 AC/DC24V.
Action determine the color, can switch the green / Red 2 kinds of color display.
High speed sampling of 50 /s (20ms).
0.01 degree: platinum temperature resistance body Pt100 higgh resolution K3HB-PPB-FLK3AT11 AC/DC24V.
Thermocouple sensor (full range) to support the resolution of 0.1.
The temperature input compensation can be easily set by 2 points.
D
