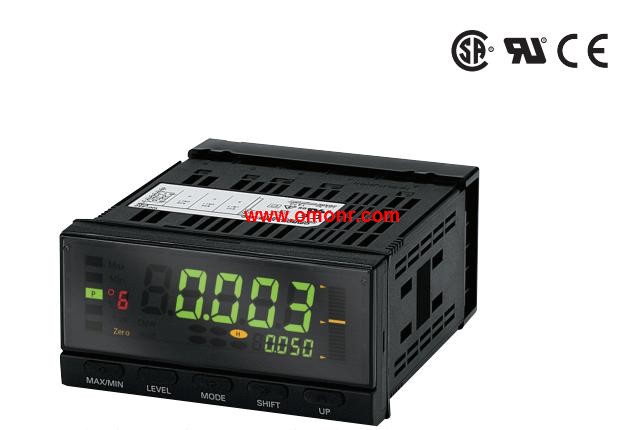

K3HB-SSD-ABCD1 AC/DC24 | OMRON High speed response digital panel table K3HB-SSD-ABCD1 AC/DC24
OMRON K3HB-SSD-ABCD1 AC/DC24 Manual And Instructions
K3HB-SSD-ABCD1 AC/DC24 datasheetPDF datasheet
OMRON K3HB-SSD-ABCD1 AC/DC24 Product information and technical parameters：
Brand: OMRON
Name: High speed response digital panel table
Model: K3HB-SSD-ABCD1 AC/DC24
Input type: high speed response type.
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External power supply DC12V80mA.
Output type: BCD+ transistor; - NPN open collector (5 bit output +HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
High speed, high precision measurement, determine the color display,
Can switch the green / Red 2 kinds of display colors.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
Series of DeviceNet type.
The depth (panel below) is only 95
